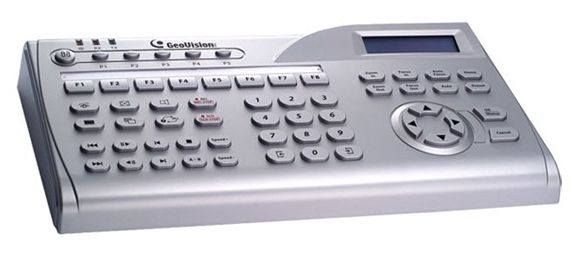

GeoVision Keyboard (CMS) Version 3 - The GV-Keyboard Is Used To Program And Operate GV-Control Center
The GV-Keyboard V3 is designed to program and operate GV-Control Center, and it can also be connected with PTZ cameras directly for PTZ control.
Specifications:
OS Supported:
32-bit: Windows XP / Windows Vista / Windows 7 / Windows Server 2008
64-bit: Windows 7 / Windows Server 2008
System Supported: GV-System V8.4 or later
Output:
USB: USB 2.0
DVR/RS-485+, DVR/RS-485-: Connects to GV-NET card, GV-NET/IO card, GV-Hub V2 or GV-COM V2
PTZ/RS-485+, PTZ/RS-485-: Connects to PTZ cameras
PTZ/RS-422+, PTZ/RS-422-: Connects to PTZ cameras
Communication:
RS-485: 9,600 bps (between the keyboard and GV-System)
RS-485 / 422: 2,400 ~ 115,200 bps (between the keyboard and PTZ cameras)
Power:
DC In: DC 12V 1A
Environmental Conditions:
Operation Temperature 0~50C / 32 ~122F
Humidity: 5%~95% (non-condensing)
Dimensions (L x W x H): 161 x 300 x 45 mm / 6.34 x 11.81 x 1.77 in
Quick Start Guide: GV-Keyboard V3
Model Number: GV-Keyboard (DVR) V3.00
Features
- A Keyboard can control up to 16 GV-Control Centers
- Multiple Keyboards can work with up to 8 monitors for Matrix View and ViewLog applications
- A Keyboard can directly set up and control up to 32 PTZ cameras
