CFASTD10-2S
1:10 CFast Duplicator PRO
Overview
The Addonics CF or CFast Duplicator is a family of fast and economical equipment for making copies of CF or CFast media. Choose from an array of models that allows you to duplicate 4, 5 or even 10 media at a time. The CF/CFast Duplicator is also easy to operate. Simply insert the source media into the source slot and target media with equal or larger capacity into the destination slots, then push the copy button to start the copying process. There is no complicated software to run.
About this model
This 1:10 CFast Duplicator PRO model allows you to copy from one CFast or CF card onto as many as ten CFast cards at one time. It is a perfect equipment for content distribution using CFast media or for transferring content from CF card to CFast card.
Diagram illustrating duplicator features

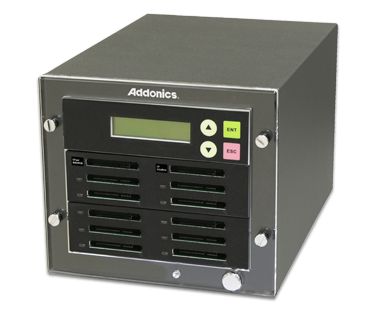

Front view
Rear view
(Dual sources feature is available in PRO model only)
Support flash media copying options
|
CFAST Duplicator
|
| Model |
Product name |
Source |
Destination |
|
CFASTD5
|
1:5 CFast Duplicator |
CFast card |
from 1 to 5 CFast cards |
|
CFASTD4-2S
|
1:4 CFast Duplicator PRO |
CF card (type I or II) or CFast card |
from 1 to 4 CFast cards |
|
CFASTD10-2S
|
1:10 CFast Duplicator PRO |
CF card (type I or II) or CFast card |
from 1 to 10 CFast cards |
Features:
- Make copy from any type of CFast or CF card
- Duplicate from one up to ten CFast cards at one time
- CF slot is compatible with CF-I, CF-II and Micro Drive
- Completely standalone with no additional hardware or software required
- Copy speed up to 300 MB/sec depending on the performance of the media
- OS independent
- LCM control module provides a rich set of robust advanced configuration options(clickFull LCD console feature list in this duplicator)
- Green LED for both source and destination slots to indicate media access
Specifications:
- Writing mode : Sector to Sector
- Support up to 300 MB/sec transferring rate (actual transfer rate depends on the speed of flash media in the source and the destination slot)
- Sturdy metal frame construction
- One CFast and one CF source slots
- Ten CFast target slots
- CF slot supports Compact Flash Type I (CF-I), Compact Flash Type II (CF-II), Micro DriveTM
- LCD display with functional control panel
- Well ventilated for efficient air flow.
- Low noise high CFM ball bearing cooling fan
- Integrated 80W 110/240 auto-sense power supply
- Compact size - 7.48 x 10.63 x 6.5 inch (190 x 270 x 16.5 mm) (W x D x H)
- Weight:9.52 lb (4.32 Kg)
- Operating environment: 0 - 60 degree C, 15% - 90% RH
- Storage environment: -40 - 90 degree C, 0% - 95% RH non-condensing
- 1 year warranty
