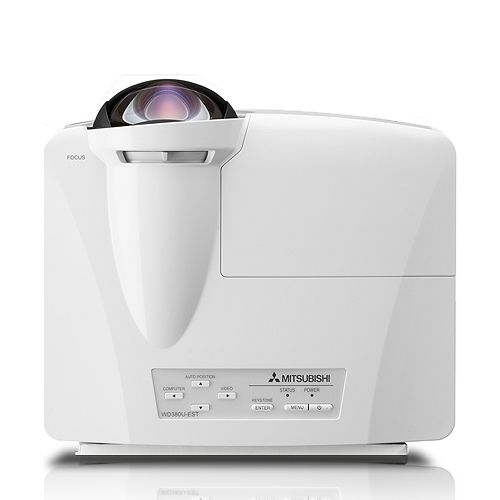

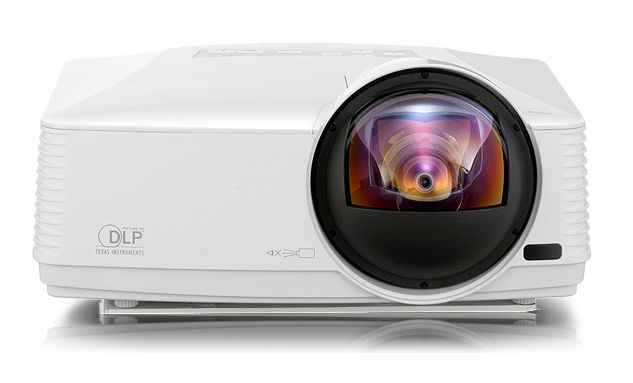

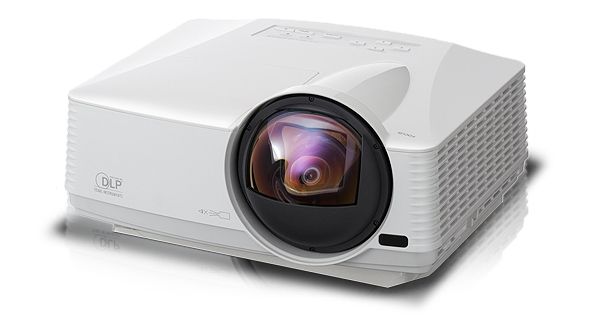

XD365U-EST
Go Interactive with Innovative DLP Projectors
Take presentations to a new level with built-in interactivity
User-friendly Interactive Pen
Revolutionizes visual interactive communication, no special projection board required
Short Throw Capabilities
Extremely short throw projection ratio of only 0.469
3D-Ready
Can render images in 3D (field sequential format, graphic card, shutter glasses required
Digital Input
HDMI input for digital connections for both PC or video sources
Next-Generation Interactivity
XD365U-EST DLP projectors bring interactivity to the presentation forefront. The projector breaks new ground with reliable and easy to use interactive pens. Besides performing the functions of conventional computer mouses, the pens can be used to draw or write on the projection screen, at a distance using the Air Mouse function or directly on the screen. You can even use both pens in Dual Pen mode. The interactive feature of this classroom projector is compatible with 3D content.
Vivid Images & Short Focal Distance
This short throw projector has an extremely low projection ratio of 0.469, with images that are crisp and clear. Using a large-diameter lens and optimal optical engine design, the DLP projectors allow presenters to move in front of projected images, without being blinded or disturbed by projector lights. Colors project beautifully with 2500lm high luminosity and a high contrast of 3000:1 for deeper blacks.
Quiet & Versatile Audio
The 10W speaker, as well as an external speaker connected via Audio Out, can still be used in stand-by mode. Unlike many standard projectors, this classroom projector doesn’t compete with the presenter’s voice. The XD365U-EST short throw projector noise is impressively low, operating at only 28dB in low lamp mode.
Outstanding Network Connectivity
When in stand-by mode, the projector allows continued use of its high-volume 10W speaker. You have the option of connecting an external speaker to the short throw projector via the Auto Out terminal. The Audio Mix feature and wireless microphone sold separately reproduce the presenters voice loud and clear in real time. A significantly low 28dB noise level in low mode makes the projector so quiet it doesnt compete with the presenter.
Featuring Crestron Room View compatibility, a network of up to 250 DLP projectors can be controlled for power/on/off, message display, and confirmation of lamp service hours. A control room computer with projector-control software and connection to the LAN enables up to 350 characters to be projected in real-time on all network projectors.
Features & Specifications
Integrated Interactivity
No whiteboard required with this interactive projector. The included interactive pen never requires calibration, and allows writing on any projection surface.
Ultra Short-Throw
Projects a 60 diagonal image from only 23 awayall with no mirrors
3D-Ready
Perfect for higher education or corporate applications, images can be rendered in stunning 3Dadding a new dimension to viewing scientific, architectural, and engineering imagery. 3D video content must be in field sequential format, a high end graphic card and special electronic shutter glasses are required.
USB Display
Connect the PC via a USB cable, eliminating the need for expensive VGA cables
LAN Display
For displaying images via a LAN, up to four computers can be connected to one projector. The projection screen can be divided into quarters, reproducing all computer screens simultaneously
PC-less Presentations
Eliminate the PC altogether when using a USB storage device. Supports JPEGS or PowerPoint converted PTG files
Wireless Compatibility
Wireless presentations are possible when used with an optional wireless dongle (not included)
Closed Caption
Provides on-screen visual representation of text
Digital Input
HDMI input for true digital connections from both PC or video sources
Wall Screen Support
Ability to project images on color backgrounds such as beige, light blue, light green, pink, blackboard and whiteboard. Projector automatically adjusts for color tone.
Display
- Imaging Technology: DLP 0.55"
- Brightness/Lumens: 2500 ANSI Lumens
- Native Resolution: 1024 x 768
- Maximum Resolution: 1600 x 1200
- Viewable Size: 60"- 150"
- Contrast Ratio: 3000:1 (On/Off)
- Color Wheel: 5-Segment (R,G,B,W,Y) (On/Off)
Included Accessories
- Interactive Pen
- Lamp Replacement Attachment
- Lens Cap
- Power Cable
- VGA (D-sub) Cable
- Remote Control (w/ 2 batteries)
- Safety Manual
- User Manual CD
Size, Weight, Power
- Weight: 9 lbs.
- Dimensions: (W x H x D) 12.8" x 4.4" x 10.2"
- Power Consumption: 340W/3.4A
- Power Requirements: AC 100-240V, 50/60Hz
- Decibels: 28dBA (Low Mode) 33dBA (Standard Mode)
Lens & Operation
- Lens Throw Ratio: 0.469 - 0.469
- Zoom & Focus Adjustment:
- PC/MAC Compatibility: Yes
- Scanning Frequency: [H] 15-80 khz, [V] 50-120 Hz [Dot Clock] max.165 MHz
- Estimated Lamp Life Rating: 6000 hrs (Low Mode) 3000 hrs (Standard Mode)
- Usage Replacement Lamp: VLT-XD560LP

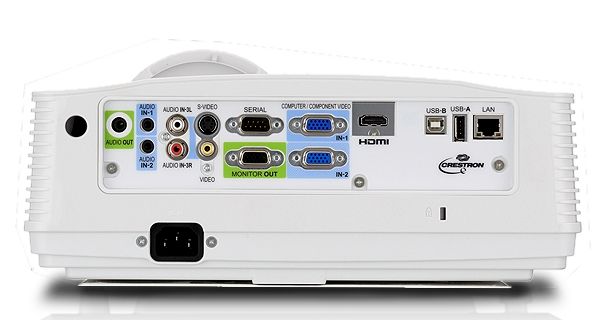

Interface
