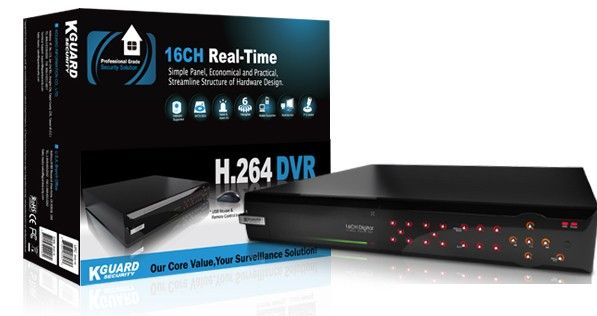

KGuard 16CH H.264 DVR - Real-Time Live Display Up to 16 Cameras With 1080i HD 1920x1080, RS-485 Port Built-In For PTZ Control, Motion Detection, RJ45, 10M/100M
No Hard Drive Disk Included

Product May Vary From Image
Part No:
185581
Brand:
KGuard
Manuf No:
Real-time live display up to 16 cameras with 1080i

Realtime live display up to 16 cameras with 1080i
Ship Weight:
4.5 KG  Details
Usually Ships:
No Longer Available   More info
Product Description

16CH H.264 DVR


SHA116.V2

Overview

Exceeding H.264 DVR with Stylish Panel Design

As a beautiful decoration you get a high quality 16-channel standalone DVR DVR adopting H.264 compression technology with modern panel to deliver you a wonderful user experience!

Features:

SHA116.V2

  • H.264 compression and dual stream network transmission
  • User friendly GUI (Graphical User Interface) & USB mouse control available for program menus
  • Supports 16 channels playback simultaneously
  • Multiplex operating (Live View, Record, Playback, Backup, I/O Control and Network Transmission)
  • USB port for upgrade or backup to USB storage
  • RS-485 port built-in for PTZ control
  • Online surveillance via IE browser for remote live viewing, recording, playback, setting and system status
  • Event trigger email alert function
  • Supports Network Time Protocol (NTP)
  • Mobile phone surveillance (Symbian , Windows Mobile, iPhone, Blackberry and Android Phone)
  • Real-time live display up to 16 cameras with 1080i high definition 1920x1080 (HDMI interface)
  • Privacy masks for private area protection max. 4 areas each channel
  • Supports up to 2 x 2 TB SATA HDDs
  • KGAURD Free DDNS Server (kguard.org) available
  • Alarm triggering screen tips, buzzer, PTZ preset, E-mail, FTP upload
  • Supports alarm pre-record function.
  • Easy backup methods: USB devices, CD-RW/DVD-RW and network download
  • Dual encoding streams support, flexible for network transmission and mobile phone monitoring

SHA116.V2 Specifications

  • Model No. SHA116.V2
  • Product Name 16CH H.264 DVR
  • Operating System LINUX
  • Multi-Tasking Live display / Record / Playback / Backup / Network Operations
  • Video
  • Video Compression H.264
  • Video System NTSC / PAL
  • Video Input 16 BNC Inputs
  • Video Output 2 BNC Outputs, 1 VGA Output, 1 HDMI Output
  • Display Resolution NTSC 704x480 (D1)
  • Display Resolution PAL 704x576 (D1)
  • Display Frame Rate NTSC 480fps
  • Display Frame Rate PAL 400fps
  • Display Modes Full Screen/ Quad / 9 channels / 16 channels / PIP / S.E.Q.
  • HDMI Interface YES
  • Max.VGA Resolution 1920x1080
  • Audio
  • Audio Input 4 RCA Inputs
  • Audio Output 2 RCA Outputs
  • Audio Alarm Modes Motion Detection, Video Loss, HDD Error/Full
  • Recording
  • Record Resplution NTSC CIF(352x240) / HD1(704x240) / D1(704x480)
  • Record Resplution PAL CIF(352x288) / HD1(704x288) / D1(704x576)
  • Recording Frame Rate NTSC 120fps@D1,240fps@HD1,480fps@CIF
  • Recording Frame Rate PAL 100fps@D1,200fps@HD1,400fps@CIF
  • Record Modes Normal / Schedule / Motion Detection / Remote Recording
  • Playback Options Event, Time and Date
  • Supports Multi-Channel Playback Simultaneously Local site: 8 Channels, simultaneously / Network: 1 channel
  • HDD Capacity Up to 2TB SATA * 2
  • Backup USB 2.0 Flash Disk / USB 2.0 HDD drive / Network
  • CD/DVD-RW NO
  • Network
  • Network Interface RJ45, 10M/100M
  • Network Protocol Supports TCP/IP, DHCP,DDNS, PPPoE
  • Internet Viewing Internet Explorer 6 or Higher (Max. 7 users at once)
  • Mobile Phone Viewing on 3G Network Symbian, Windows Mobile, iPhone, Blackberry and Android Phone
  • Tablet Device Viewing iPad, Android Pad
  • Network Time Protocol (NTP) supported YES
  • Free DDNS YES
  • General
  • PTZ Control YES (Built-in RS-485 / Supports PELCO-P & PELCO-D)
  • Sensor & Alarm NO
  • Mouse Control YES
  • Remote Control YES
  • Compatible OS Windows 2000, XP, Vista and 7
  • Power Supply 12V5A
  • Operating Temperature (w/o HDD) -10C ~ 50C (14F~122F)
  • Storage Temperature -10C ~ 50C (14F~122F)
  • DVR Dimension (mm) 431x395x73

Product Warranty


1 Year Return to Base
