NEC PH1000U Professional Installation DLP Projector - 1920x1200, 11000 Lumens, 2000:1, 2500Hrs, VGA, DisplayPort, RCA, HDMI, USB, RS232, RJ-45

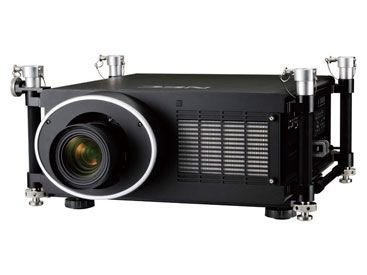

Product May Vary From Image
Part No:
185363
Brand:
NEC
Manuf No:
PH1000U
Ship Weight:
40 KG  Details
Usually Ships:
No Longer Available   More info
Product Description
11,000-lumen Professional Installation Projector PH1000U

Overview

The PH1000U, a high end 3-Chip installation projector is ideal for installations that demand the highest levels of heavy duty usage and unique picture quality in highest resolution.

Five optional bayonet lenses and an integrated stacking/rigging frame make it ideal for Rental/Staging, Large Corporate, High Education, Conference Room, Museum and Signage.

At a glance:

  • Display content that demands attention - with WUXGA resolution and superb brightness levels and colour ranges, your viewers will enjoy an outstanding visual experience.
  • Installation is easy, even in challenging venues - motorized Lens Shift with vertical and horizontal adjustment and Lens Memory makes setting up the perfect installation image easy.
  • Simple Connectivity - due to the vast number of connectors featured with this projector, including an innovative DisplayPort terminal and a host of networking, analog and digital connection terminals.
  • Time saving network control - for cost saving convenient maintenance and management of content and scheduling.
  • Special Characteristics - Digital 3D Reform; 3D Stacking; AMX Beacon; Blanking; Crestron RoomView; DICOM Simulation ; Direct Power-Off Function; Edge Blending Function; Free Tilt; Geometric Correction; Help Function; Keystone Correction (H=40, V=30); LAN control; Lens Memory; Lens Shift (vertical -0.4 max/+0.55 max, horizontal 0.2 max.); Lens Shutter; Metal Cabinet; OPS module support; OSD with 27 languages; Optional User Logo; Outstanding Multimedia and Network Functions; PJ LINK; Password Security System; Plug&Play W-LAN Option; Powerpoint, Movie, PDF and USB Picture Viewer; RS-232 Control; SNMP; Seamless Switching; Stacking Function; Test Pattern; Windows 7 Network Projector

3-Chip DLP

  • Unique 3-chip DLP system creates quality, larger-than-life images under virtually any operating condition with dual UHP lamps.

5 Bayonet-Style Lenses

  • Allows for quick and easy lens exchange. Optional lenses enable the user to determine the appropriate lens to cover projection distances between 2.6 and 283 feet.

Built-in Wall Colour Correction

  • Presets provide for adaptive colour tone correction to display properly on non-white surfaces.

Dual Computer Inputs

  • Ensures quick switching between presentations.

ECO Mode

  • Extends lamp life, lowers audible noise and reduces total cost of ownership.

HQV Video Processing

  • A high-performance video processing/scaling system designed for computer signals as well as standard or high-definition video, this technology brings home-theater-quality images to meeting rooms and classrooms using pixel-based, motion-adaptive de-interlacing to remove undesirable motion.

Open Pluggable Specification (OPS)

  • The first industry-wide standardization in option slots that allows for easier installation, use and maintenance of digital signage.

Stacking Capabilities

  • Allows the projectors to boost an images brightness up to 20,000 lumens, which is ideal for larger-sized screens and environments with heavy ambient light. This feature also prevents the complete loss of an image, which can happen when using only one projector.

Windows Networking

  • Displays multimedia files (.jpeg, .bmp, .png, .mpeg2 or .wmv9) in the Windows shared folder on a local network using the Viewer functionall without bringing your PC into the conference room.

Windows Remote Desktop

  • Allows you to control a networked computer by connecting a USB mouse and keyboard directly to the projectors USB input.

Product Specifications

Optical

Display Technology DLP (0.96" DMD)

Light Output(Lumens) 11,000 normal / Eco = approx. 80% of normal mode

Resolution

Native WUXGA 1920 x 1200

Maximum WUXGA 1920 x 1200

Contrast Ratio (up to) 2000:1

Lamp Type 400W AC / 320W eco

Lamp Life (up to) 2000 hours normal / 2500 hours eco

Screen Size (diagonal) 80 to 500 in. / 2 to 12.7m

Throw Ratio Variable

Projection Distance 1.8 to 243 ft. / 0.55 to 74m

Projector Angle 2.7 to 11.2 tele / 4.4 to 15.4 wide

Lens

Zoom Power

Focus Power

F number, fnumber Variable

Shift Power: +50/-40% vertical, +/-20% horizontal

Keystone Correction +/- 35 horizontal, +/- 30 vertical

Signal Compatibility/Connectivity

Scan Rate

Horizontal 15-108 kHz

Vertical 48-120 Hz

Supported Video Standards NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM

SD/HD Video Signal Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

PC Signal Compatibility VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA

Macintosh Compatibility Yes

Input/Output Terminals

RGB1(analog) VGA 15-pin D-sub

RGB2(analog) VGA 15-pin D-sub

RGB3(analog) 5-BNC

RGB4(digital) HDMI w/ HDCP

RGB5(digital) DisplayPort

Video 1 RCA

Video 2 S-Video

Monitor out VGA 15-pin D-sub

External Control RS-232, IR, Wired LAN, DDC/CI, USB, Wireless LAN (optional)

Sync Compatiblity Separate Sync / Composite Sync / Sync on G

Networking RJ-45 Monitoring

Electrical

Power Requirements 100-240V AC, 50/60 Hz
Input Current 10.8A

Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving) 1006W / 810W / 33W / 0.2W

Mechanical


Optional Lenses NP25FL, NP26ZL, NP27ZL, NP28ZL, NP29ZL

Installation Orientation Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
Dimensions (WxDxH) 22.7 x 9.3 x 22 in. / 578 x 235 x 558mm
Net Weight 87.1 lbs. / 39.5 kg

Fan Noise 45 dB normal / 39 dB eco
Regulations USA UL 60950-1, FCC A, Canada C-UL 60950-1

Environmental


Operating Temperature 41-104F / 5-40C
Humidity 20-80% non-condensing
Storage -14-122F / -10-50C

Limited Warranty

  3 years. Lamp warranty is 1 year or 500 hours, whichever comes first.

Additional Features

  • Automatic keystone correction
  • Auto power on
  • ECO Mode technology
  • Closed captioning
  • Variable audio out
  • Carbon savings meter
  • Virtual Remote
  • Sleep timer
  • Quick power-off
  • Built-in wall color correction
  • Advanced AccuBlend
  • AutoSense
  • Kensington lock slot
  • Image magnification
  • Discreet source keys




Product Warranty


1 Year Return to Base
