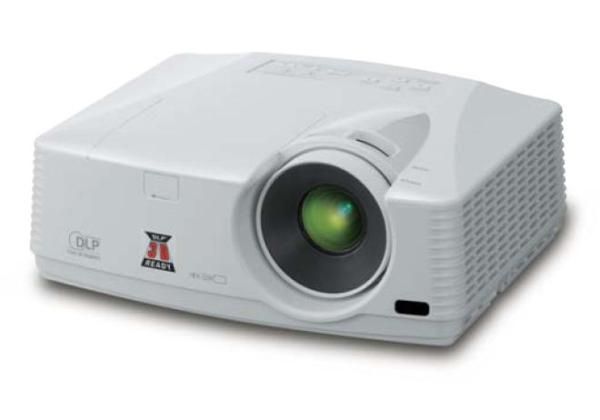

XD560U
Portable projector to take along to any venue
Images are crisp, bright and vivid, & the user-friendly display makes presentations easier & more convenient than ever
3D-Ready
Can render images in 3D (requires field sequential format, graphic card, shutter glasses)
USB or PC-less Display
Connect to PC via USB cable or simply use a USB storage device for jpg or PTG files
LAN Display
Connect up to 4 computers and show all 4 sources simultaneously
Wireless Compatibility
Wireless presentations are possible when used with optional wireless dongle (not included)
Easier & More Convenient Than Ever
The XD560U DLP projector is the portable projector to take along to the classroom, boardroom, or other small venue. Images are crisp, bright and vivid, and the user-friendly display makes presentations easier and more convenient than ever.
- Crestron RoomView compatible
- DarkChip3 for High 3000:1 contrast
- High 3500lm brightness
- HDMI compatible
- 3D ready
Easy Operation for No-fuss Presentations
Quality presentations are simple and convenient with the XD560U data projector. A 6000-hour long-life lamp reduces operating and maintenance costs, and the DLP projector top-loading design means changing the lamp is simple. The automatic power off function kicks in when no signal is output for a period of time that you determine.
Network Connectivity & Remote Operation
Compatible with Crestron RoomView, XD560U allows you to connect a network of up to 250 projectors for control of power/on /off, confirmation of lamp service hours and message display. When connected to a LAN, a control room projector equipped with projector-control software enables Visual PA messages to be displayed in real-time on the network. Device management is simplified with AMX Device Discovery, and the projector supports closed caption.
Projection without a Computer
The DLP projector lets you present slideshows or animation effects without a PC. PowerPoint files can be converted into a special format, saved on a USB drive and then connected to the XD560U portable projector through the USB port. You can also display images wirelessly from a PC using the optional wireless dongle.
High Performance & Easy to Use
Lightweight at just 7.7 lbs, the portable XD560U is built for classroom and meeting room presentations. Throw ratio is a short 1.4 2.3. The high volume 10W built-in speaker makes external speakers unnecessary and can be used even in stand-by mode. The DLP projector can also be used with an external speaker while in stand-by mode via the Audio Out terminal, while the Audio Mix feature and wireless microphone, sold separately, reproduce the presenters voice clearly in real time.
Display
- Imaging Technology:
- DLP 0.65"
- Brightness/Lumens:
- 3500 ANSI Lumens
- Native Resolution:
- 1024 x 768
- Maximum Resolution:
- 1600 x 1200
- Viewable Size:
- 40"- 300"
- Contrast Ratio:
- 3000:1 (On/Off)
- Color Wheel:
- 5-Segment (R,G,B,W,Y) (On/Off)
Included Accessories
- N/A
- Lens Cap
- Power Cable
- Remote Control (w/ 2 batteries)
- Safety Manual
- User Manual CD
Size, Weight, Power
- Weight:
- 8.4 lbs.
- Dimensions: (W x H x D)
- 12.8" x 4.4" x 10.2"
- Power Consumption:
- 340W/NAA
- Power Requirements:
- AC 100-240V, 50/60Hz
- Decibels:
- 28dBA (Low Mode)
33dBA (Standard Mode)
Lens & Operation
- Lens Throw Ratio:
- 1.5 - 2.3
- Zoom & Focus Adjustment:
- Manual Zoom & Focus
- PC/MAC Compatibility:
- Yes
- Scanning Frequency:
- [H] 15-105 khz, [V] 50-120 Hz
[Dot Clock] max.165 MHz
- Estimated Lamp Life Rating:
- 6000 hrs (Low Mode)
3000 hrs (Standard Mode)
- Usage Replacement Lamp:
- VLT-XD560LP
Interface
- NTSC, PAL, SECAM:
-
NTSC/NTSC 4.43/PAL (including PAL-M, N) / SECAM/PAL-60, Component Video; 480i/p (525i/p), 576i/p (625i/p), 720p (750p), 1080i/p (1125i/p 60Hz), 1080i/p (1125i/p 50Hz)
- Computer & Video Input Support:
-
RGB: Mini D-sub 15pin x2
Video: RCA x1, S-VIDEO x1
Audio: Stereo mini jack (3.5mm) x1
Digital: HDMI x 1
- RS-232 Communication Support: Yes
- 12V Trigger: N/A
- Computer Monitor Loop-Out: Yes
- Audio Speaker: Yes
- Audio Out: Yes
- USB Mouse Support: N/A
