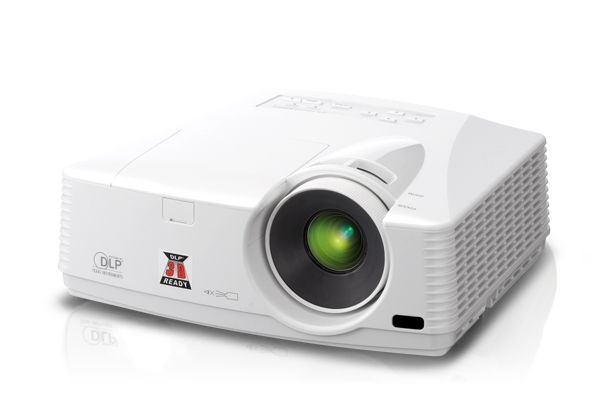

XD550U
Feature Packed High Value Projection
Images are crisp, bright and vivid, & the user-friendly display makes presentations easier & more convenient than ever
3D-Ready
Can render images in 3D (requires field sequential format, graphic card, shutter glasses)
USB or PC-less Display
Connect to PC via USB cable or simply use a USB storage device for jpg or PTG files
LAN Display
Connect up to 4 computers and show all 4 sources simultaneously
Wireless Compatibility
Wireless presentations are possible when used with optional wireless dongle (not included)
Feature Packed & A Great Value
For classroom or meeting room presentations, the portable XD550U DLP projector offers an excellent option. Crisp, clear image projection and convenient features make this ultra portable projector a great value.
- High 3000lm brightness
- 3000:1 contrast ratio with DarkChip3
- Crestron RoomView compatible
- HDMI compatible
- PC-Less presentation support
- Amazing estimated lamp life up to 6000hrs (low mode)
Delivers Rich, Vibrant Images
With 3000lm luminance, images are bright and can be seen clearly without lowering the light in the room. The newly introduced DarkChip3 ensures rich contrast with deep blacks with bright and vibrant colors.
Remote Management
Connect with up to 250 projectors. Crestron RoomView compatibility gives you network control of power/on/off and message display and allows you to monitor lamp life. When using a control room projector with projector control software Visual PA lets you display messages on the network in real-time. The DLP projector supports closed caption functionality and AMX Device Discovery lets you manage devices easily.
Projects with or without a PC
The versatile XD550U projector reproduces images from a computer, VGA, USB, LAN or wirelessly using a commercially available wireless dongle. Present slideshows or animation effects on the DLP projector by saving PowerPoint files converted to a special format onto a USB drive. Simply connect the device to the USB port and your slides are ready to view.
User-friendly Operation
Highly portable at just 7.7 lbs, the XD550U data projector makes presentations easy and worry-free. Power turns off automatically when no image signal is out for a predetermined period of time set by you. The DLP projector features a lamp life estimated to last up to 6000-hours (low mode) , making lamp changes few and far between. When its time to change the lamp out, the top-loading design makes the process fast and easy. No need for external speakers with the high volume10W built-in speaker, although an external speaker can be connected via the Audio Out terminal.
Features & Specifications
Display
- Imaging Technology: DLP 0.65"
- Brightness/Lumens: 3000 ANSI Lumens
- Native Resolution: 1024 x 768
- Maximum Resolution: 1600 x 1200
- Viewable Size: 40"- 300"
- Contrast Ratio: 3000:1 (On/Off)
- Color Wheel: 5-Segment (R,G,B,W,Y) (On/Off)
Size, Weight, Power
- Weight: 8.4 lbs.
- Dimensions: (W x H x D) 12.8" x 4.4" x 10.2"
- Power Consumption: 340W/NAA
- Power Requirements: AC 100-240V, 50/60Hz
- Decibels: 28dBA (Low Mode) 33dBA (Standard Mode)
Lens & Operation
- Lens Throw Ratio: 1.5 - 2.3
- Zoom & Focus Adjustment: Manual Zoom & Focus
- PC/MAC Compatibility: Yes
- Scanning Frequency: [H] 15-105 khz, [V] 50-120 Hz [Dot Clock] max.165 MHz
- Estimated Lamp Life Rating: 6000 hrs (Low Mode)
3000 hrs (Standard Mode) Usage Replacement Lamp: VLT-XD560LP
Interface
- NTSC, PAL, SECAM:
-
NTSC/NTSC 4.43/PAL (including PAL-M, N) / SECAM/PAL-60, Component Video; 480i/p (525i/p), 576i/p (625i/p), 720p (750p), 1080i/p (1125i/p 60Hz), 1080i/p (1125i/p 50Hz)
- Computer & Video Input Support:
-
RGB: Mini D-sub 15pin x2
Video: RCA x1, S-VIDEO x1
Audio: Stereo mini jack (3.5mm) x1
Digital: HDMI x 1
- RS-232 Communication Support: Yes
- 12V Trigger: N/A
- Computer Monitor Loop-Out: Yes
- Audio Speaker: Yes
- Audio Out: Yes
- USB Mouse Support: N/A
