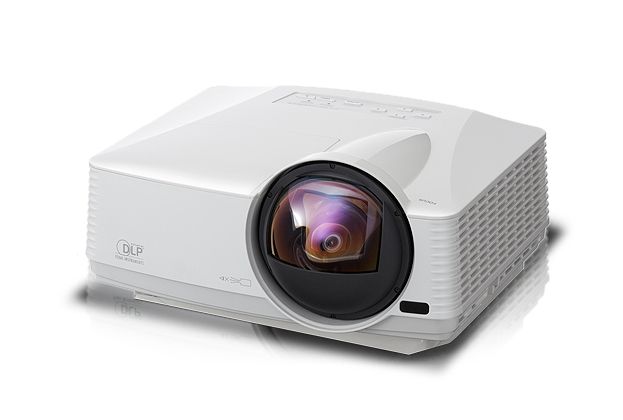

XD360U-EST
Bright & crisp images on big screens
Small-room presentation headaches disappear with the new XD360U-EST DLP projector.
Ultra Short-Throw
Projects a 60 diagonal image from only 23 away, with no mirrors
3D-Ready
Can render images in 3D (requires field sequential format, graphic card, shutter glasses)
USB or PC-less Display
Connect to PC via USB cable or simply use a USB storage device for jpg or PTG files
LAN Display
Connect up to 4 computers and show all 4 sources simultaneously
Small-room Presentation Headaches Disappear
This ultra short throw projector projects bright and crisp images on big screens at an impressive close range. Images and are crisp and bright.
- Ultra short throw ratio of 0.469
- Supports Crestron RoomView & AMX Device Discovery
- Higher 3000:1 contrast with Dark Chip3
- HDMI compatibleClosed caption support
- 3-D ready
Super Short Focal Distance & Big, Beautiful Images
The extremely short throw ratio of only 0.469 delivers excellent images using a large-diameter lens and optimal optical engine design. The DLP projector projects colors brilliantly with 2500lm high luminosity, while a high contrast of 3000.1 ensures deep blacks.
Equipped for Network Connectivity & Remote Operation
The XD360U-EST short throw projector offers Crestron® Room View compatibility, allowing control of power/on/off, message display and confirmation of lamp service hours within a network of up to 250 projectors. A control room computer equipped with projector-control software and connected to the LAN enables
Visual PA messages of up to 350 characters to be projected in real-time on network projectors.
PC-less Presentation Capabilities
Present slideshows or animation effects on the XD360U-EST DLP projector without a PC. Using a PTG Converter, PowerPoint files can be converted into a special format that can be saved on a USB drive.
Simply connect the USB device through the short throw projector USB port and the presentation is ready to go. Images can also be projected wirelessly from a PC using the optional wireless dongle.
Low Maintenance, Lightweight & Built for Ease
The XD360U-EST is made for easy portability, weighing in at only 9.62 lbs. The 6000-hour long-life lamp substantially reduces operating cost and maintenance.
And when the lamp needs to be switched out, top-loading makes it fast and easy.
DLP Projector with Versatile Audio System
When in stand-by mode, the projector allows continued use of its high-volume 10W speaker. You have the option of connecting an external speaker to the short throw projector via the Auto Out terminal. The Audio Mix feature and wireless microphone sold separately reproduce the presenters voice loud and clear in real time. A significantly low 28dB noise level in low mode makes the projector so quiet it doesnt compete with the presenter.
Ideal for the classroom or conference room, the feature-rich XD360U-EST offers extreme short throw focus distance for bright and crisp presentations even in small venues. The DLP projector is backed by the extensive Mitsubishi 3-year parts and labor warranty, 1-year 500 hour lamp warranty and 3 years on the Express Replacement Assistance ERA) program.
Features & Specifications
Display
- Imaging Technology: DLP 0.55"
- Brightness/Lumens: 2500 ANSI Lumens
- Native Resolution: 1024 x 768
- Maximum Resolution: 1600 x 1200
- Viewable Size: 60"- 150"
- Contrast Ratio: 3000:1 (On/Off)
- Color Wheel: 5-Segment (R,G,B,W,Y) (On/Off)
Included Accessories
- Lamp Replacement Attachment
- Lens Cap
- Power Cable
- VGA (D-sub) Cable
- Remote Control (w/ 2 batteries)
- Safety Manual
- User Manual CD
Size, Weight, Power
- Weight: 9 lbs.
- Dimensions: (W x H x D) 12.8" x 4.4" x 10.2"
- Power Consumption: 340W/3.4A
- Power Requirements: AC 100-240V, 50/60Hz
- Decibels: 28dBA (Low Mode) 33dBA (Standard Mode)
Lens & Operation
- Lens Throw Ratio: 0.469 - 0.469
- Zoom & Focus Adjustment: Manual Zoom & Focus
- PC/MAC Compatibility: Yes
- Scanning Frequency: [H] 15-80 khz, [V] 50-120 Hz [Dot Clock] max.165 MHz
- Estimated Lamp Life Rating: 6000 hrs (Low Mode) 3000 hrs (Standard Mode)
- Usage Replacement Lamp: VLT-XD560LP
Interface
- NTSC, PAL, SECAM:
-
NTSC/NTSC 4.43/PAL (including PAL-M, N) / SECAM/PAL-60, Component Video; 480i/p (525i/p), 576i/p (625i/p), 720p (750p), 1080i/p (1125i/p 60Hz), 1080i/p (1125i/p 50Hz)
- Computer & Video Input Support:
-
RGB: Mini D-sub 15pin x2
Video: RCA x1, S-VIDEO x1
Audio: Stereo mini jack (3.5mm) x1
Digital: HDMI x 1
- RS-232 Communication Support: Yes
- 12V Trigger: N/A
- Computer Monitor Loop-Out: Yes
- Audio Speaker: Yes
- Audio Out: Yes
- USB Mouse Support: N/A
