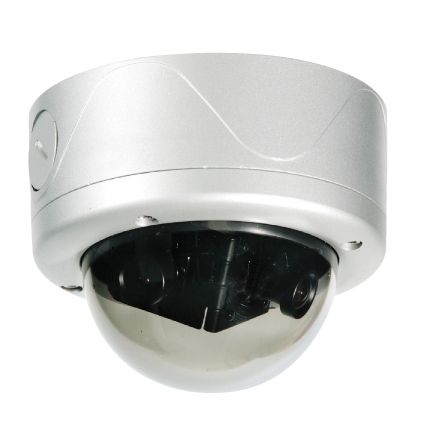

ICU HD-N010R Panoramic 180 Degree Camera - High Digital Color, True Day & Night, 1/3" Sony Super HAD, 540TV - White

Product May Vary From Image
Part No:
173370
Brand:
ICU
Manuf No:
HD-N010R

HDN010R
Ship Weight:
1.5 KG  Details
Usually Ships:
No Longer Available   More info
Product Description
ICU-N010R

General Features

  • 1/3” SONY SUPER HAD
  • 540TV Lines(HD-N010R) / 420TV Lines(HD-N009N)
  • Panoramic 180 Degree Camera
  • Limitless Observation Angle 180° + 180°(360°)
  • Viewing Angle without Blind Spot
  • Cutoff Less Panoramic Viewing Angle
  • Best Observer in Anyplace
  • Cable concealed thru bracket
  • 3-AXIS Bracket


CAD


Specification


MODEL


HD-N009N


HD-N010R

Image Pick-Up Device

1/3" SONY SUPER HAD CCD

TV System

NTSC, PAL

Total Pixels

NTSC=510(H)*492(V)/PAL=500(H)*582(V)

 NTSC=768(H)*494(V)/PAL=752(H)*582(V)

Scanning System

2:1 Interlace

Sync System

Internal Sync

Resolution

420TV Lines

 540TV Lines

Minimum lllumination

0.1 Lux

S/N Ratio

More than 46dB

Gamma Characteristic

r=0.45

Video Output

CVBS:1.0Vp-p 75ohm

Electronic Shutter Speed

NTSC=1/60sec~1/100,000sec/PAL=1/50sec~1/100,000sec

Power Supply

DC 12V

Power Consumption

250mA

Lens

3.8mm+3.8mm fixed Board Lens(180)

perational Temp.

-10~+50 Deg C.RH 95% Max.

Storage Temp.

-20~+60 Deg C.RH 95% Max.

Dimension

142mm(W)*105mm(H)*142mm(D)

Weight

1500g

Product Warranty


2-year RTB
