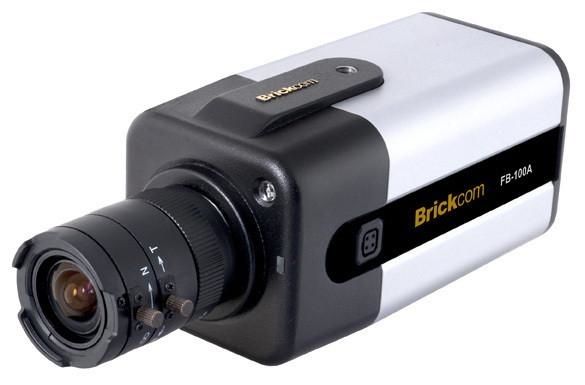

The Brickcom FB-100A series offers a reliable and excellent solution for 24-hour video surveillance. The FB-100A series offers highly efficient H.264 video compression, which reduces bandwidth and storage requirements without compromising image quality. M-JPEG and MPEG- 4 are also supported for flexibility.
With the megapixel progressive sensor and removable IR-cut Filter, this series delivers extremely clear and detailed images that CCTV cameras cannot offer. The internal SD/SDHC memory card slot allows for local storage, which prevents data loss if the data connection is lost. Users can view live feed anywhere by internet browser or 3G mobile phone. Also, the FB-100A series can transmit the video to portable devices through other technology, such as WiMax, NAS, Digital Frame and power line.
The FB-100A series receives power through the same cable as for data transmission. This makes installation easy because there is no external power supply needed.
For easy setup, the FB-100A series offers a step-by-step installation package. "EasyConfig" makes the configuration simple even for users without an IT background.
With IEEE 802.11 b/g/n wireless compliance, network installation is not restricted by location or landforms. The WFB-100A series can be installed in any location with wireless coverage. It can easily be used to cover remote districts and historic spots.
In addition to the motion detection function, the FB-100Aa (advanced) Series can also support Intelligent Video Analysis which can be used for applications such as object tracking, people counting, and forbidden region alarm.
Application Scenario
Specifications
Product Name |
Megapixel Fixed Box Network Camera |
Model Name |
FB-100A - MEGAPIXEL / 2 way Audio / SDHC / Ethernet / POE / RS485 / DIDO WFB-100A - MEGAPIXEL / 2 way Audio / SDHC / Ethernet / POE / RS485 / DIDO / Wireless 802.11 b/g/n / WPS |
Hardware System |
CPU : 500 MHz Flash : 16M RAM : 64M DDR |
Image Sensor |
Sensor Type : 1/4" Mega-Pixel CMOS Sensor Sensor Resolution : 1280 x 800 pixel Minimum Illumination : 1 Lux (without IR LEDs) |
LENs |
Lens Type : Vari-focal with Manual-Iris(CS-mount) Focal Length : f= 2.9~8.2 mm View Angle (HOR) : 26.7 ~ 69.0 |
Video |
Image Compression Format : H.264 / MPEG4 / MJPEG / Auto Exposure Control / Auto White Balance / Auto Gain Control |
Max Image Resolution |
- 1280 x 800: 30fps - 640 x 400: 30fps |
Audio |
Audio Streaming : Two-way audio support Audio Input : Built-in microphone, external microphone or line input Audio output : Line output |
Network |
Ethernet : one 10/100Mbps RJ-45 Supported Protocols : TCP/IP, UDP, ICMP,DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP,Samba, PPPoE, UPnP, RTP, RTSP,RTCP, Wireless 802.11b/g/n (WFB-100A) |
Interface & Buttons |
DC Power Connector(12V) AC Power In(24V) Ethernet Cable Connector(PoE) General I/O Terminal Block(RS485 included) External MIC/Line Input External Audio output Built-in MIC Reset Button SD/SDHC memory card slot WPS Button (WFB-100A) Detachable A |
LEDs |
FB-100A - Status/Ethernet(Power/Link) WFB-100A - Status/WPS/Ethernet(Power/Link) |
Power Input |
AC 24V DC 12V / 1A (Power Supply) PoE : 802.3af Compliant |
Max Power consumption |
Max Power Consumption : 10 watts |
Environment |
Operating Temperature : 0C ~ 40C (32F ~104F) Operating Humidity : 10% ~ 80% |
Dimension |
120(L) * 60 (W) * 60(H) mm |
Weight |
FB-100A Net: 380g(Without Lens) Gross : 893G WFB-100A Net: 385g(Without Lens) Gross: 903G |
Certification |
FCC,CE |
Warranty |
Limited 2-year warranty |
