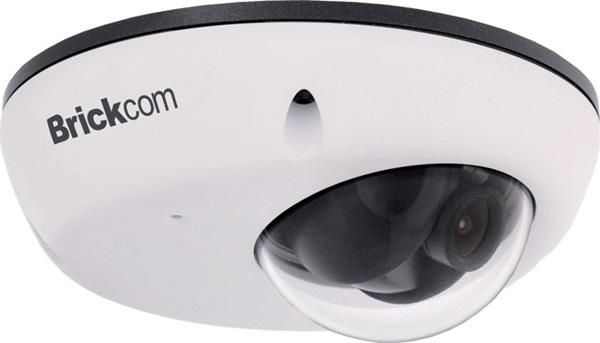

The Brickcom MD-100A series is a mini dome network camera designed for outdoor use. The inconspicuous, sleek design of this series makes provides it with protection from high-level weather and vandal. Its ability to withstand vibration, shock, dust, rust, high temperatures and humidity make it an effective security camera for parking lots and public transportation.
The MD-100A series is designed to provide end users with high quality video feed for an easily accessible security system. By offering H.264/M-JPEG/MPEG-4 triple codec compression, it is able to offer a flexible system which does not require high bandwidth and storage capabilities. The internal micro SD memory card slot allows for local storage, which prevents data loss if the data connection is lost. The wide angle lens allows for the camera to capture a panoramic view which can be viewed at a high 1280 x 800 megapixel resolution.
To simplify installation, the MD-100A series is equipped with 802.af compliant Power over Ethernet (PoE), allowing the camera to receive power through the same cable as for data transmission. This camera series offers a unique design which allows easy use for users with any level of technical background.
Application Scenario
Specifications
| Product Name |
Megapixel Mini Dome Network Camera |
| Model Name |
MD-100A |
| Hardware System |
CPU : 500 MHz
Flash : 16M
RAM : 128M DDR |
| Image Sensor |
Sensor Type : 1/4" Mega-Pixel CMOS Sensor
Sensor Resolution : 1280 x 800 pixel
|
| Minimum Illumination |
1 Lux |
| LENs |
Lens Type : Board Lens
Focal Length : f= 2.86 mm
View Angle :
H : 81.2
V : 49.1
D : 98.2
F-number : F2.0 |
| Video |
Auto Exposure Control / Auto White Balance / Auto Gain Control
Image Compression Format :H.264 / MPEG4 / MJPEG |
| Max Image Resolution |
- 1280 x 800: 30fps
- 640x480: 30fps
- 320x192: 30fps |
| Audio |
1-way audio
Built-in MIC |
| Network |
Ethernet : one 10/100Mbps RJ-45
Supported Protocols :
TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, Samba, PPPoE, UPnP, Bonjour, RTP, RTSP, RTCP |
| Interface & Buttons |
Micro SD/SDHC card slot
Ethernet Cable Connector(PoE) |
| LEDs |
Power / Status / Internet |
| Power Input |
Input : PoE 802.3af Compliant |
| Max Power consumption |
3.8 watt |
| Environment |
Operating Temperature : -20C ~ 50C (-4F ~122F)
Operating Humidity : 20% ~ 80% |
| Dimension |
110 mm x 45 mm |
| Weight |
335g |
| Certification |
FCC,CE, EN50155, IP-67 |
| Warranty |
Limited 2-year warranty |
