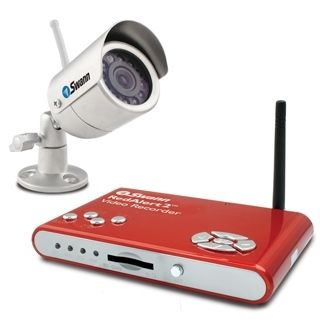

RedAlert2 & PPW-245 Wireless Camera
SW344-WD2
Portable & discreet surveillance / Wireless Camera included / Record onto 2GB included SD Card / Motion triggers recording as still JPEG photos or 5 or 10 second AVI video clips
Product Info
Easy viewing
Includes a wireless camera & you can add a wired camera to view 2 channels at a time in picture-in-picture mode. When moiton is detected on a camera, the RedAlert 2 automatically switches camera views & begins

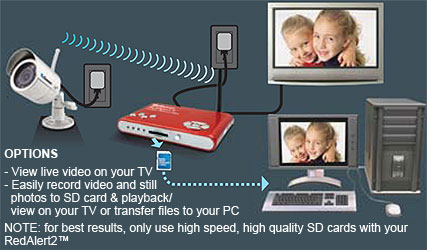

Do it yourself
Connect to power then view / playback on your TV. you can also play recorded footage on your PC via SD card
Higher resolution
Now with 720 x 480 (NTSC) / 720 x 576 (PAL) D1 image quality you can see greater detail in live & recorded modes
Motion detection
Motion triggers still JPEG photos or AVI video clips (5 or 10 seconds in length)
Longer recording
Includes a 2GB SD card to record 225 video clips or 3,500 still photos. Upgrade to 16GB for greater storage capacity
Affordable Surveillance
With its tiny footprint & camera included, this unit is a powerful home or business surveillance tool
Specifications
| RedAlert2 |
|
|
Video |
|
Video Format
|
NTSC or PAL |
|
Video Inputs
|
1 Composite Input |
|
Video Outputs
|
1 Composite Output |
|
Display Resolution
|
NTSC: 720 x 480
PAL: 720 x 576 |
|
Display Frame Rate
|
NTSC: 30fps
PAL: 25fps |
|
|
Audio |
|
Audio Input
|
1 |
|
Audio Output
|
1 |
|
|
Recording |
|
Compression Format
|
Video: MPEG
Photo: JPEG |
|
Recording Resolution
|
NTSC: 720 x 480
PAL: 720 x 576 |
|
Recording Frame Rate
|
NTSC: Up to 30fps
PAL: Up to 25fps |
|
Recording Modes
|
Manual / Motion |
|
Multiplex Operation
|
Simplex |
|
HDD Interface / Memory Type
|
SD Card |
|
Hard Drive Support
|
Up to 16GB SD |
|
|
General |
|
Operating Power
|
DC 9V |
|
Dimensions
|
5.25 x 3.33 x 0.75
133mm x 85mm x 20mm |
|
Weight
|
148g |
|
Backup Method
|
SD Card |
| Wireless Camera |
| |
Video
|
|
Image Sensor
|
1/3" CMOS |
|
Video Quality
|
400 TV Lines |
|
Number of Effective Pixels
|
NTSC: 510 x 492
PAL: 628 x 582 |
|
Minimum Illumination
|
0 Lux (IR on) |
|
Day/Night Mode
|
Color during day / switches to B&W at night |
|
White Balance
|
Automatic |
|
Signal / Noise Ratio
|
> 48dB |
|
Electronic Shutter
|
1/60 - 1/15,000 NTSC
1/50 - 1/15,000 PAL |
|
Gain Control
|
Automatic |
|
Backlight Compensation
|
Yes |
|
Wide Dynamic Range
|
No |
|
Lens
|
6mm |
|
Viewing Angle
|
53 |
| |
Audio
|
|
Microphone
|
Yes |
|
Audio Range
|
9ft / 3m |
| |
Night Vision
|
|
Night Vision Distance
|
Up to 26ft / 8m |
|
IR Cut Filter
|
No |
|
Number of Infra-Red LEDs
|
11 |
|
Infra-Red Wavelength
|
850nm |
|
Infra-Red LED Life
|
10,000 hours |
| |
General
|
|
Operating Power
|
DC 12V |
|
Operating Temperature
|
-14F ~ 122F / -10C ~ +50C |
|
Body Construction
|
Aluminum |
|
Dimensions - Camera & Stand
|
5.1" x 2.0" x 2.0"
130mm x 50mm x 50mm |
|
Weight Camera & Stand
|
8.6oz / 245g |
|
Dimensions - Receiver
|
1.0" x 3.1" x 4.3"
25mm x 80mm x 110mm |
| |
Wireless
|
|
Digital or Analog
|
Analog |
|
Max. Transmission Range
|
Up to 165ft / 50m |
|
Typical Range
|
65ft / 20m |
|
Frequency
|
2.4 GHz |
|
 |

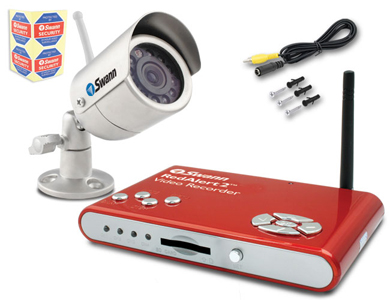

Contents
- RedAlert2 Video Recorder
- Antenna
- PPW-245 Wireless Camera
- SD Card 2GB
- RCA Video Cable 3ft/1m
- Power Adapters
- Mounting Screws & Plugs
- Operating Instructions
- Theft Deterrent Stickers x 4 |
*Note: Product contents may change without notice.
|
