The large-screen 3D viewer delivers full impact and presence of your 3D photos. With simple remote control operations and easy data transfers from viewer to
PC and vice versa, your 3D experience is enhanced.
Enjoy High-quality 3D Images
Innovative technology in the 3D digital viewer lets you view 3D images without the aid of special glasses - just your eyes! Not only 3D images but also 2D photos can be shown in vivid detail on the large
LCD.
3D
LCD Monitor System
Original Technology Displays 3D Images that Jump Out of the Screen
Our ability to perceive depth comes from viewing an object along two different lines of sight. This phenomenon is called parallax. The monitor on the 3D digital camera uses an originally developed Light Direction Control System and, the 3D digital viewer adopts a Parallax Barrier System to precisely direct light to the right and left eyes in a way that simulates parallax. Both enable easy and natural viewing of 3D images with just the naked eye.
1. Light Direction Control System/ Parallax Barrier System
2. 3D
LCD monitor
3. Image received by the left eye
4. Image received by the right eye
5. 3D image
Sharp and Intuitive Design
8-inch High-resolution
LCD Panel
View your beautiful 3D images in high resolution on the large digital viewer (400 x 600 x 2 channel). Just insert the
SD memory card of images and the viewer turns on, ready to present a 3D photo slideshow. One touch of the touch key easily switches between 2D and 3D display modes. Manual fine-tuning for a more natural 3D effect is also simple with Parallax Control key.

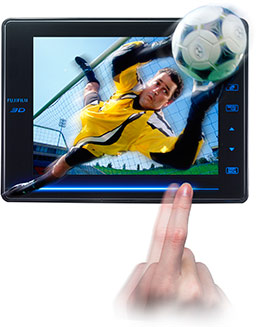

Illuminated Touch Bar & Touch Keys
Illuminated touch bar and touch keys make viewer control smooth and easy. When not in use, the illuminated controls fade out, leaving just a frame and undistracted enjoyment of your images.
Diverse Playback Functions

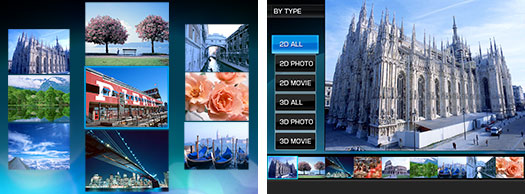

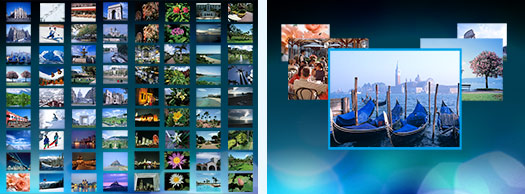

Enjoy 3D and 2D images presented in your choice of over 20 different slideshow templates or watch playback of movie with recorded stereo audio. The viewer also features image management and navigation functions, making it easy to organize your favorite files and even select photos from Micro Thumbnail, 5 or 9 Frame View at a time.
- Image Search
The large-screen 3D viewer delivers full impact and presence of your 3D photos. With simple remote control operations and easy data transfers from viewer to
PC and vice versa, your 3D experience is enhanced.
3D Playback with Simple Settings

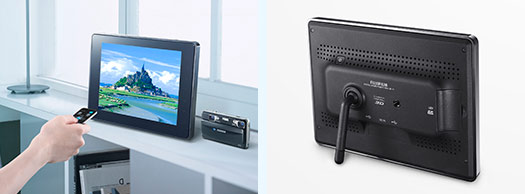

Setup Freedom & Simple Remote Control
The viewer comes with an easy-to-setup stand for standard horizontal or vertical portrait* display, or it can be mounted on a tripod. With the included remote controller, users can remotely access selection and display menus for easy control of major functions and menu commands.
- * Display in the vertical orientation is limited to 2D images.
Data Transfer from Personal Computers & Digital Cameras
The viewer can read and display image data stored on memory cards. It can also receive image data from the FinePix REAL 3D W1 via high-speed Ir communication. Moreover, users can also directly connect it to their personal computer via
USB and transfer stored images to the viewer for display.
Specifications
| Model
|
|
|
LCD type
|
3D / 2D Switchable color display, 3D: Parallax Barrier type
|
| Screen size
|
|
| Resolution
|
800 x 600 dots (3D: 400 x 600 x 2 channel)
|
| Display aspect ratio
|
|
| Brightness
|
|
| Internal memory
|
|
| Compatible Image file format
|
JPEG, MP Format, AVI, 3D-
AVI
|
| Digital input / output
|
-
USB connector:
-
[Device] mini-
USB (Type B)
- Media slots:
-
xD-picture card /
SD memory card /
SDHC memory card
- IR communication:
-
|
| Power supply
|
AC power adapter (included, AC100-240V 50/60Hz)
|
| Power consumption
|
Approx. 15W (for 3D) / Approx. 9w (for 2D)
|
| Dimensions
|
Approx. 216.0 (W) x 162.0 (H) x 30.9 (D) mm /8.5 (W) x 6.4 (H) x 1.2 (D) in.
|
| Weight
|
Approx. 630g / 22.2oz. (including stand)
|
