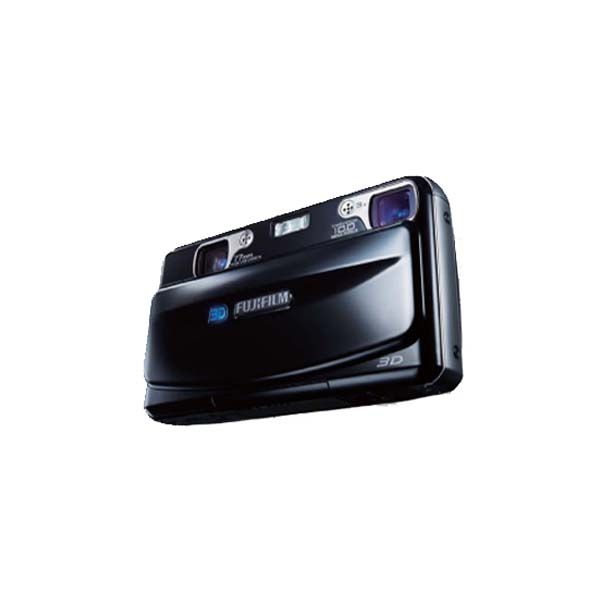

FujiFilm Finepix Real 3D W1 Digital Camera - Black
2x10MP, 3xOptical Zoom, 2.8"LCD, 3D/2D Images + Video, 3D LCD Screen

Product May Vary From Image
Part No:
137054
Brand:
FujiFilm  Web Site
Manuf No:
75055
Ship Weight:
1 KG  Details
Usually Ships:
No Longer Available   More info
Product Description

Features

FinePix REAL 3D Technology Debut

FinePix REAL 3D Technology Debut

FinePix REAL 3D Technology pioneers a new dimension in imaging.

3D Shooting

3D Shooting

Shooting 3D images with an unprecedented real feel is simple and automatic with the built-in 3D Auto function of the FinePix REAL 3D W1 digital camera.

2D Shooting

2D Shooting

FinePix REAL 3D system opens new frontiers in 2D shooting. Two 3x optical zoom Fujinon lenses and two CCDs let you capture versatile styles of simultaneous shooting possible.

Intuitive Interface & Attractive Function

Intuitive Interface & Attractive Function

3D excitement begins the moment you see the stunning form and builds as you experience the innovative interface.

FinePix REAL 3D Technology Debut

FinePix REAL 3D Technology pioneers a new dimension in imaging.

Welcome to the Future of Imaging

From the advanced 3D digital camera to the stunning 3D digital viewer and breakthrough 3D printing technology, this total 3D imaging system will change the way you take and enjoy photos. Viewed with just the naked eye, 3D images come alive with breathtaking reality and natural beauty. Images that once were only a dream are now a reality.

FinePix REAL 3D Lens System

High-precision Lens Alignment Technology for High-quality 3D Image Capture

Acclaimed for superb resolution and definition, Fujinon lenses are the choice of professional cameramen and a key component of many professional imaging devices. For the FinePix REAL 3D W1, Fujifilm has developed a groundbreaking image capture system comprising two Fujinon lenses and two CCDs, and the system is integrated in the compact body with high-precision engineering. An aluminum die-cast frame provides the solid platform for the precision alignment of the left and right lenses so you can take 3D images with an unprecedented quality of reality.

RP (Real Photo) Processor 3D

Instant and Simultaneous Processing of Image Data Captured by the Twin Lens- CCD System

Image data captured by the twin lens- CCD system is processed by the RP (Real Photo) Processor 3D - a newly developed processor that evaluates all photographic factors from focus and brightness to color tonality, and then merges the left and right images in a single 3D image. It is also the power behind 3D Auto - the function that makes point-and-shoot 3D photography a reality! This processor also controls the two capture systems independently to shoot two different images of the same subject simultaneously - each with different photographic settings.

3D LCD Monitor System

Original Technology Displays 3D Images that Jump Out of the Screen

Our ability to perceive depth comes from viewing an object along two different lines of sight. This phenomenon is called parallax. The monitor on the 3D digital camera uses an originally developed Light Direction Control System, and the 3D digital viewer adopts a Parallax Barrier System to precisely direct light to the right and left eyes in a way that simulates parallax. Both enable easy and natural viewing of 3D images with just the naked eye.

1. Light Direction Control System / Parallax Barrier System

2. 3D LCD monitor

3. Image received by the left eye

4. Image received by the right eye

5. 3D image

Enjoy 3D Playback on the Rear Camera Monitor and Viewer

With the FinePix REAL 3D system, you can review images in 3D on the camera's LCD monitor and also on the large LCD monitor of the 3D digital viewer. Frame your shot in 3D and play it back in 3D on the spot with the camera's monitor. On the large-screen 3D digital viewer, you can enjoy and share the full impact and presence of your 3D photos.

  • Click here to find out more

High-resolution 3D Print System

Advanced Printing Technology for Production of Quality 3D Prints

Fujifilm has succeeded in the precision lamination of high-resolution, low-halation prints with lenticular sheets that create the 3D effect. Advanced technology encodes and aligns the captured 3D image according to the pitch of micro lenses arranged in parallel rows on the lenticular sheet. Seen through the sheet, image data is perceived with a parallax effect. The result is a natural and beautiful 3D print that preserves and breathes life into the moment forever.

1. High quality print

2. Lenticular sheet

3. 3D print

3D Printing Principles

4. Lenticular sheet

Step 1
When passing through the lenticular sheet (sheet with cylindrical parallel lenses), interlaced image data are separated into left and right images.

Step 2
The left and right eyes see the respective images.

Step 3
Parallax interprets the disparity between the images as a sense of depth.

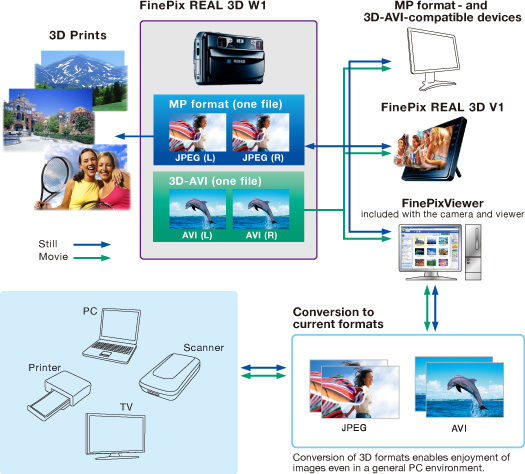

3D File Format

For 3D image recording, the FinePix REAL 3D system adopts the MP format for stills and 3D- AVI format for movies. MP format is the multi-picture format standardized by CIPA*. FinePix REAL 3D W1 can also simultaneously record still images in both MP format (3D) and JPEG (2D). 3D- AVI adopts the widely used AVI multimedia container format. Adoption of these formats enables 2D playback of recorded images on the user's current personal computer. With the bundled FinePix Viewer image viewing software, users can also convert MP format and 3D- AVI to conventional 2D formats.

3

3D Shooting

Shooting 3D images with an unprecedented real feel is simple and automatic with the built-in 3D Auto function of the FinePix REAL 3D W1 digital camera.

3D Auto Shooting

3D Still and Movie Shooting with Double 10 megapixels CCD Plus 3x Optical Zoom

Frame your subject, press the shutter, and the scene is captured in a high-quality 3D image. Not only stills but also movie shooting recorded with sound can be taken effortlessly. Featuring an innovative 3D viewing LCD monitor, you can playback the results in 3D right on the spot.

Advanced 3D Modes

Individual Shutter 3D Shooting

With Individual Shutter 3D Shooting, you can take two shots of the same subject from different positions, and the camera automatically merges and saves the captured images as a single enhanced 3D photo. After the first image is taken, it appears as a transparent overlay on the monitor to help you align and frame the second shot. Photos of distant subjects like mountains and skyscrapers look amazing in enhanced 3D, while close-up subjects like flowers come to life in natural 3D.

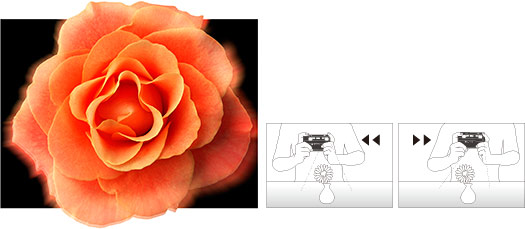

Macro Photography

Shoot 3D photos with a more natural sense of depth.

First Shot

Second Shot

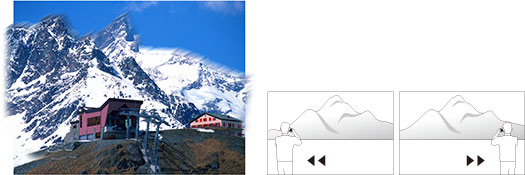

Landscape Photography

Shoot impressive 3D photos with an enhanced presence.

First Shot

Second Shot

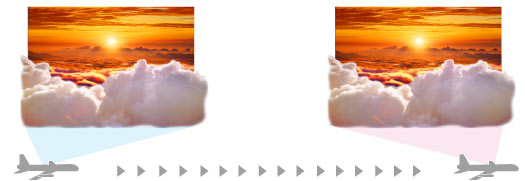

Interval 3D Shooting

With a single press of the button, the camera automatically takes successive shots. Perfect for shooting from a car, train or even an airplane to create a photo with an ultra 3D sense of depth. Imagine shooting clouds from the window of your flight and capturing the scene in super 3D. Fujifilm truly brings a whole new dimension to photo enjoyment!

First Shot
Second Shot

Parallax Control (3D Tuning Function)

Auto Parallax Control automatically adjusts the 3D effect for optimum viewing. For manual fine-tuning of the image, the Parallax Control Button on the back of the camera makes it easy to bring the 3D image into perfect focus while shooting or playing back 3D stills and movies.

Manual Shooting Functions

Pursue the extremes of 3D and 2D photo expression with the manual shooting functions of the FinePix REAL 3D W1. Choose M (Manual) Mode for the freedom to set shutter speed and aperture. Get instant control of depth of field in A (Aperture Priority) Mode. With the built-in P (Program) Mode, the camera automatically sets the shutter speed and aperture value. With manual shooting functions, you can capture what your mind's eye sees in every detail.

Scene Positions for Every Moment

Just select the Scene Position (SP) that matches the subject and situation. The camera automatically optimizes every setting from shutter speed, white balance, sensitivity and even turning flash on or off. With a choice of 13 easy-to-select Scene Positions for both 2D and 3D photos, moments are captured with the best possible results every time you press the shutter.

1. Natural Light

2. Natural Light & with Flash

3. Portrait

4. Landscape

5. Sport

6. Night

7. Night (Tripod)

8. Sunset

9. Snow

10. Beach

11. Underwater

12. Party

13. Anti Blur

2D Shooting

FinePix REAL 3D system opens new frontiers in 2D shooting. Two 3x optical zoom Fujinon lenses and two CCDs let you capture versatile styles of simultaneous shooting possible.

Twin FUJINON Lens & RP (Real Photo) Processor 3D

Two built-in Fujinon 3x optical zoom lenses and two CCDs, each with 10 megapixel resolution, comprise the hardware platform for the image capture system. In addition, the advanced image processing of the newly developed RP (Real Photo) Processor 3D enhances the resolution of 2D images, reproducing the subject in every detail.

Advanced 2D Mode

The Advanced 2D Modes let users use the two image capture systems independently. Just like shooting with 2 digital cameras, the user can choose different zoom, sensitivity and color settings for each image capture system and take 2 photos of the same scene at the same instant.

Tele/Wide Simultaneous Shooting

Zoom in on your subject and also take a wide-angle shot of the same scene at the same time. The twin-lens system lets you freely set the zoom magnification for one lens while the other is set to wide angle, letting you capture the exact same instant with totally different angles of view.

  • * With Tele/Wide Simultaneous Shooting, the left lens can zoom while the right lens is fixed in a wide angle setting.
Wide Angle
3x Optical Zoom

2-Color Simultaneous Shooting

Change the settings and with one press of the shutter, you can take two photos of the same scene with a different color tonality. Set one lens system to Standard and the other to the vivid colors of Chrome. You can also capture the scene in both Standard and vintage Black & White or shoot simultaneously with Chrome and Black & White. Fujifilm doubles your enjoyment of every moment.

Standard
Black & White

2-Sensitivity Simultaneous Shooting

Take two photos of the same instant - one at high sensitivity and one at low sensitivity. For example, you can take panned shots of a moving subject at the exact same instant with different degrees of background motion blur. In dark scenes, you can prioritize blur reduction for one shot, and image quality for the other. For times when you are not sure which sensitivity setting is best, you can shoot the moment at two settings and later pick the image to keep during playback.

Low Sensitivity
High Sensitivity


Intuitive Interface & Attractive Function

3D excitement begins the moment you see the stunning form and builds as you experience the innovative interface.

Intelligent Interface

Sliding Barrier

With a robust sliding barrier protecting the lenses, the camera is designed for superb ease of operation.

Illuminated Buttons

Settings are easy with blue illuminated buttons. Even graphical user interface including the menus are displayed in 3D.

One-touch 3D/2D Switch

Control button for one-touch switching between 3D and 2D shooting.

2.8-inch 3D LCD

The newly developed 3D LCD monitor serves as both a canvas for composing shots and a screen for playing back your images in 3D.

Versatile Function

Wireless Transfer of 3D/2D Image Data (IrSimple/IrSS)

With built-in IrSimple/IrSS compatibility, 3D images captured with the FinePix REAL 3D W1 can be effortlessly beamed for viewing on the LCD screen of the FinePix REAL 3D V1. Transfer of 2D image data is also possible with printers and digital cameras compatible with high-speed infrared data communications.

  • * IrSimple and IrSS are registered trademarks of the Infrared Data Association.
  • * Only SD/ SDHC memory cards can be used for transfer of 3D movie data.

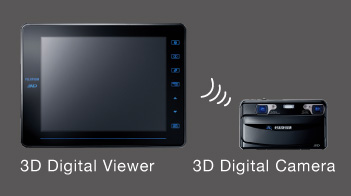

3D Digital Viewer
3D Digital Camera
  • * Easy wireless transfer of image data.

SD/ SDHC Compatible Slot

The versatile card slot is compatible with SD and high-capacity Secure Digital ( SDHC) memory cards.

Specifications

Model

FinePix REAL 3D W1
Number of effective pixels *1

10.0 million pixels
CCD sensor

1/2.3-inch CCD x2

Storage media
  • Internal memory (Approx. 42MB)
  • SD memory card
  • SDHC memory card *2
File format
3D Still image:

MPO+ JPEG, MPO (Multi Picture Format compatible)

2D Still image:

JPEG (Exif Ver 2.2 *3)
(Design rule for Camera File system compliant / DPOF-compatible)

3D Movie:

3D- AVI (Stereo AVI format with 2 image channels)

2D Movie:

AVI format (Motion JPEG with sound)

Number of recorded pixels

L: 4:3 3,648 x 2,736 / L: 3:2 3,648 x 2,432 / M: 4:3 2,592 x 1,944 / S: 4:3 2,048 x 1,536 pixels
Lens

Fujinon 3x optical zoom lens, F3.7(W) - F4.2(T)
Lens focal length

f=6.3 - 18.9mm, equivalent to 35.0 - 105.0mm on a 35mm camera
Zoom
3D:

up to 3.8x (Combined optical and digital zoom)

2D:

up to 17.1x (Combined optical 3x zoom and digital 5.7x zoom)
Aperture

Wide: F3.7 / F5 / F8, Telephoto: F4.2 / F5.6 / F9
Focus distance (from lens surface)
Normal:
  • Approx. 60cm / 2ft. to infinity
Macro (2D only):
  • Wide: Approx. 8cm - 80cm / 0.3ft. - 2.6ft.
  • Telephoto: Approx. 60cm - 3m / 2.0ft. - 9.8ft.
Quick AF:
  • Approx. 1m / 3.3ft. to infinity
Sensitivity

Auto / Equivalent to 100 / 200 / 400 / 800 / 1600 (Standard Output Sensitivity)
Exposure control

TTL 256-zones metering, MULTI, SPOT, AVERAGE
Exposure mode

Programmed AE, Aperture Priority AE, Manual

Shooting modes
SP mode:

Natural light, Natural light and with Flash, Portrait, Landscape, Sport, Night, Night (Tripod), Sunset, Snow, Beach, Underwater, Party, Anti-Blur

ADV 3D:

Interval 3D shooting, Individual shutter 3D shooting

ADV 2D:

Tele/Wide simultaneous shooting, 2-Color simultaneous shooting, 2-Sensitivity simultaneous shooting
Shutter speed
Night:
  • 1/8sec. - 1/500sec.
Night (Tripod):
  • 3sec. - 1/500sec.
Manual:
  • 1/2sec. - 1/1000sec.
All other modes including AUTO:
  • 1/4sec. - 1/1000sec.
Continuous shooting
3D:
  • Top-40 (max. 2 frames/sec. S only)
2D:
  • Top-40 (max. 1 frame/sec.)
  • High speed Top-40 (max. 3 frames/sec., S only)
Focus
Mode:
  • Single AF
AF mode:
  • 3D: Center
  • 2D: Center, Multi (for Face Detection off only)
White balance

Automatic scene recognition
Preset: Fine, Shade, Fluorescent light (Daylight), Fluorescent light (Warm white), Fluorescent light (Cool white), Incandescent light, Underwater lighting
Self-timer

Approx. 10sec. / 2sec. delay
Flash

Auto flash

Effective range: ( ISO AUTO):

Normal
  • Wide: Approx. 60cm - 3.7m / 2ft. - 12.1ft.
  • Telephoto: Approx. 60cm - 3.3m / 2ft. - 10.8ft.
Macro (2D only)
  • Wide Approx. 30cm - 80cm / 1ft. - 2.6ft.
  • Telephoto: Approx. 60cm - 1.6m / 2ft. - 5.2ft.

Flash modes

  • Red-eye removal OFF: Auto, Forced Flash, Suppressed Flash, Slow Synchro.
  • Red-eye removal ON: Red-eye Reduction Auto, Red-eye Reduction & Forced Flash, Suppressed Flash, Red-eye Reduction & Slow Synchro.
LCD monitor

2.8-inch, Approx. 230,000 dots color LCD monitor with Light Direction Control, Approx. 100% coverage

Movie recording

640 x 480 pixels / 320 x 240 pixels (30 frames/sec.) with stereo sound
* Zoom function cannot be used during movie recording.
Photography functions
3D:

Auto parallax control, Power management, Framing guideline, Frame No. memory

2D:

Face Detection (with Red-eye removal), Power management, Framing guideline, Frame No. memory
Playback functions
3D:

Parallax adjustment, Multi-frame playback (with Micro Thumbnail), Cropping, Resize, Sorting by date, Slideshow

2D:

Face Detection (with Red-eye removal), Multi-frame playback (with Micro Thumbnail), Sorting by date, Cropping, Resize, Slideshow, Image rotate
Video output

NTSC / PAL selectable

Digital interface

USB 2.0 High-speed
Power supply

NP-95 Li-ion battery (included), AC power adapter AC-5VC (included)
Dimensions

Approx. 123.6 (W) x 68 (H) x 25.6 (D) mm / 4.9 (W) x 2.7 (H) x 1.0 (D) in. (excluding accessories, battery and memory card)
Weight

Approx. 260g / 9.2oz (excluding accessories, batteries and memory)
  • *1 Number of effective pixels: The number of pixels on the image sensor which receive input light through the optical lens, and which are effectively reflected in the final output data of the still image.
  • *2 Please see the Fujifilm website to check memory card compatibility.
  • *3 Exif 2.2 is a digital camera file format that contains a variety of shooting information for optimal printing.

Memory Card Capacity and Image Quality / Size

The figures for the number of available frames assume that MPO+ JPEG is selected.

Multiply these numbers by about 1.5 for MPO - only files, and by about 3 for JPG (2D) images.

Number of images / recording time
Modes Still Image
Number of recorded pixels 3,648 x 2,736 3,648 x 2,432 2,592 x 1,944 2,048 x 1,536
Quality FINE NORMAL FINE NORMAL FINE NORMAL FINE NORMAL
File Size MPO
+ JPEG 		14.7MB 7.4MB 13.1MB 6.6MB 7.5MB 3.8MB 4.7MB 2.4MB
MPO 9.8MB 4.9MB 8.7MB 4.4MB 5.0MB 2.5MB 3.1MB 1.6MB
JPEG 4.9MB 2.5MB 4.4MB 2.2MB 2.5MB 1.3MB 1.6M 0.8MB
Internal Memory
(approx. 42MB) 		2 5 3 6 5 11 8 17
SD memory card 512
MB 		30 65 35 70 65 120 100 200
1GB 65 130 75 140 130 260 200 410
2GB 130 260 150 290 260 20 410 810
SDHC memory card 4GB 260 530 300 590 530 1,040 830 1,630
8GB 530 1,070 600 1,200 1,060 2,090 1,680 3,270
16GB 1,070 2,120 1,200 2,380 2,110 4,150 3,330 6,500
Number of images / recording time
Modes 3D Movie 2D Movie
Number of recorded pixels 640 x 480 320 x 240 640 x 480 320 x 240
Quality VGA QVGA VGA QVGA
Internal Memory
(approx. 42MB) 		- 36sec. - 1min.10sec.
SD memory card 512
MB 		3min. 7min. 7min. 13min.
1GB 7min. 14min. 14min. 27min.
2GB 14min. 28min. 28min. 54min.
SDHC memory card 4GB 28min.* 56min.* 56min.* 108min.*
8GB 57min.* 113min.* 113min.* 218min.*
16GB 114min.* 224min.* 224min.* 433min.*
  • Actual number of frames and recording time varies depending on the type of memory card or shooting conditions.
  • * Total length of all movie files. Individual movies can not exceed 2GB, regardless of capacity of memory card.

CAUTION

If you experience fatigue or discomfort while viewing 3D images, cease use immediately. A ten-minute break is recommended about once every half hour. Switch to 2D immediately if 3D images still appear double after you have adjusted parallax. Individuals with a history of photosensitive epilepsy or heart disease or who are unwell or suffering from fatigue, insomnia, or the affects of alcohol should refrain from viewing 3D images. 2D display is also recommended for young children (up to the age of about six) whose visual system is still maturing and for individuals with notable differences in vision between their two eyes, who may find it difficult or impossible to observe the 3D effect. Viewing 3D images while in motion may cause fatigue or discomfort.


Product Warranty


1 Year Return to Base
