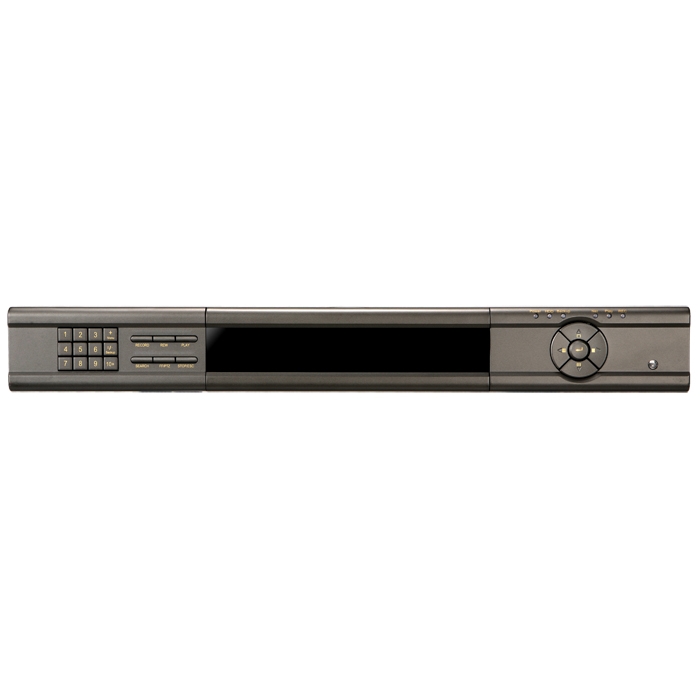

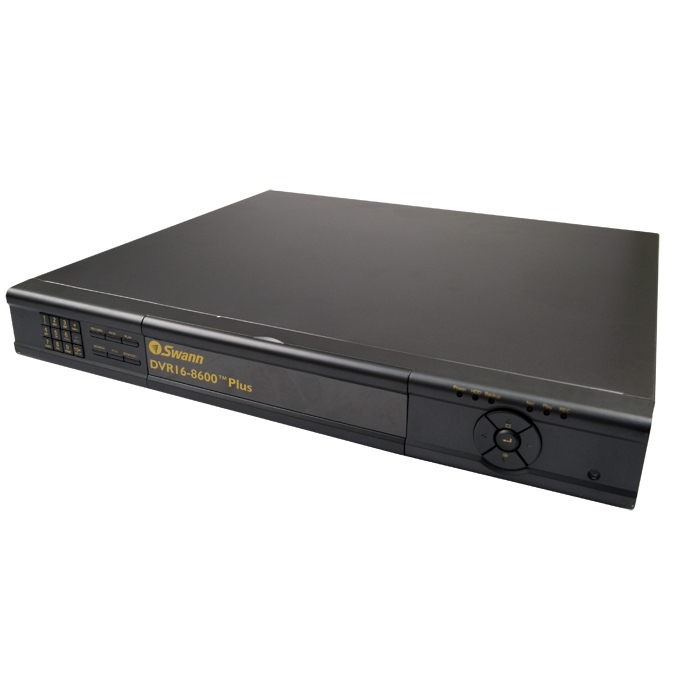

16 Channel H264 DVR with pre-installed 250GB HDD, 10 CCD Day/Night cameras, 4 CCD DomeCam & 2 professional CCTV cameras
Perfect for any home or business!
Advanced H264 recording
State-of-the-art H264 compression records at a lower bit rate for high quality playback, longer recording with less storage required
Amazing video images from 240fps global recording, 480fps live view
Ready to record with pre-installed 250GB Seagate SATA HDD
Easy back-up via USB port
Multiple recording modes including motion detection, timer, event recording (motion detection), recording list with playback in single or multi-screen mode Swann Maxi Day / Night Cameras x 10
420 TV Lines for high CCD image resolution
65ft (20m) high powered infra-red night vision
Weather resistant & vandal-proof aluminum case & hood
50ft (15m) heavy duty BNC cables
Easy mount to ceilings & walls
Fitted with a standard 6mm (40) lens
|
|
| Product Info |
Features
CeilingEye CCD DomeCam x 4
- 400 TV Lines for high CCD image resolution
- 32ft (10m) infra-red night vision
- Easily mount on ceilings, roofs or eaves
- 50ft (15m) heavy duty BNC Cables
- Plugs into any DVR, VCR, TV or Swann security monitor
PRO-770 Professional CCTV Cameras x 2
- High Resolution, 520 TV Lines
- High Quantity 1/3 SONY Super HAD CCD sensor
- Minimum Illumination While IR ON 0 lux
- Infrared Lamps Irradiation Distance, 50m
- Weather resistant casing for All Weather Conditions
|
|
|
| Specifications |
| Digital Video Recorder |
|
Compression Format
|
Standard H.264 Baseline |
|

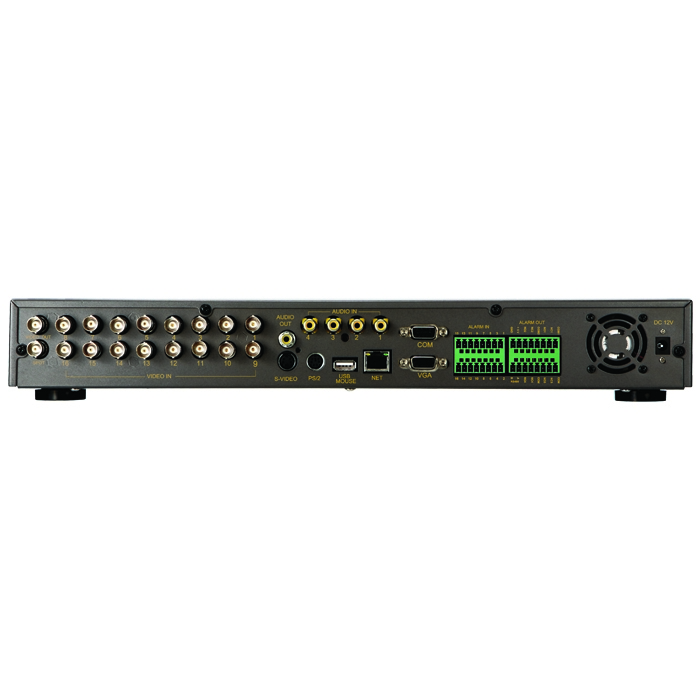

Video Output Composite
|
1.0V p-p/75 Ohms, BNC x 2 S-Video x 1, VGA x 1 |
|
Video Input Composite
|
1.0V p-p/75 Ohms, BNC x 16 |
|
Display Resolution
|
720 x 480 (NTSC) |
|
Record Resolution
|
352 x 240, 704 x 480 (NTSC) |
|
Display Frame Rate
|
480fps (NTSC) |
|
Global Record Frame Rate
|
240fps, 60fps (NTSC) |
|
Audio Input
|
-8dB~22k, RCA x 4 |
|
Audio Output
|
-8dB~92dB, RCA x 1 |
|
Record Mode
|
Manual / Sensor / Timer / Motion detection |
|
Operation
|
Pentaplex |
|
Network Interface
|
RJ45 (LAN, Internet) |
|
PTZ Control
|
Yes |
|
Communication Interface
|
RS485, USB2.0 x 2 (front USB for back-up, back USB for mouse), PS/2 x 1 |
|
Hard Disk
|
Pre-installed Seagate 250GB |
|
Remote Control
|
Yes |
|
Power Supply
|
12 Volts |
| Camera |
|
Image Sensor
|
SuperHAD CCD |
|
Picture Elements
|
NTSC 510 (H) x 492 (V)/ PAL 500 (H) x 582 (V) |
|
Horizontal Resolution
|
420 TV Lines |
|
S/N Ratio
|
More than 48db |
|
Minimum Illumination
|
0 LUX |
|
Video Output
|
1.0V(P-P)75 |
|
Power Supply
|
DC 12V |
|
Connector
|
BNC |
|
Infrared Wavelength
|
24 units 850nm |
|
Illumination Distance
|
Up to 65ft / 20m |
|
Auto Switch
|
Night (IR on) / Day (IR off) |
|
Housing
|
Aluminum Alloy |
|
Size
|
4 x 23/4 x 63/4 (99mm x 71mm x169mm) |
|
|
| |

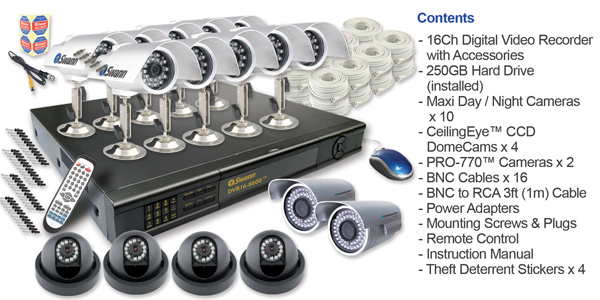

| What's in Box? |
*Note: Product contents may change without notice.
|
|
|
|
