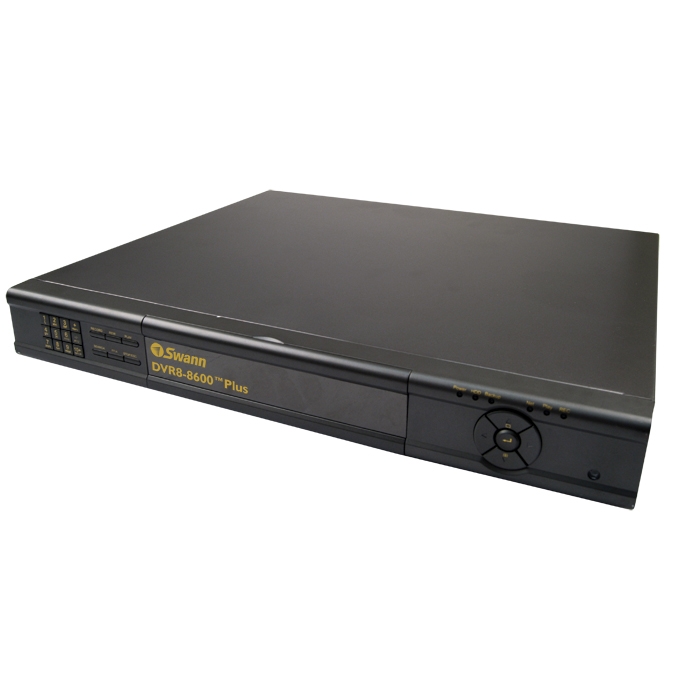

DVR8-8600 Combo Kit 8 Channel Digital Video Recorder + 8 Maxi Day/Night Cameras
All-in-one kit for remote viewing with motion detection! Perfect for any home or business.
The DVR4-Pro-Net is all-in-one kit for remote viewing with motion detection. Kit comes with 4 super CMOS security cameras + 60ft (18m) cables, so you can start surveillance immediately and view remotely over the web/network. Features MJPEG & MPEG4 video compression technology for high quality recording/high disk storage capacity. Allows live display, recording, playback, backup and network operation at the same time! Supports network remote recording & backup, and web surveillance allows 5 users to view cameras simultaneously. Records to HDD when motion detection alarm is activated, and alarm triggered recording will send alerts with images to your email address. |
|
| Product Info |
Features
LDVR8-8600TM
- View & record up to 8 cameras simultaneously
- Multiple recording modes for full customization
- Flexibly display mode Auto Switch, Full Screen & Quad
- Remotely view & record via the internet
- Backup via network, USB or external CD-R/RW drive
- Protect your home or business 24/7
Swann Maxi Day / Night Cams x 8
- 420 TV Lines for high CCD image resolution
- 65ft (20m) high powered infra-red night vision
- Weather resistant & vandal resistant aluminum case & hood
- 50ft (15m) heavy duty BNC cable x 4
- 100ft (30m) heavy duty BNC cable x 4
- Easy mount to ceilings & walls
- Fitted with a standard 6mm lens
|
|
|
| |
| Specifications |
| Digital Video Recorder |
|
Compression Format
|
Standard H.264 Baseline |
|
Video Output Composite
|
1.0V p-p/75 Ohms, BNC x 2 S-Video x 1, VGA x 1 |
|
Video Input Composite
|
1.0V p-p/75 Ohms, BNC x 16 |
|
Display Resolution
|
720 x 480 (NTSC) |
|
Record Resolution
|
352 x 240, 704 x 480 (NTSC) |
|
Display Frame Rate
|
480fps (NTSC) |
|
Global Record Frame Rate
|
240fps, 60fps (NTSC) |
|
Audio Input
|
-8dB~22k, RCA x 4 |
|
Audio Output
|
-8dB~92dB, RCA x 1 |
|
Record Mode
|
Manual / Sensor / Timer / Motion detection |
|
Operation
|
Pentaplex |
|
Network Interface
|
RJ45 (LAN, Internet) |
|
PTZ Control
|
Yes |
|
Communication Interface
|
RS485, USB2.0 x 2 (front USB for back-up, back USB for mouse), PS/2 x 1 |
|
Hard Disk
|
Pre-installed Seagate 250GB |
|
Remote Control
|
Yes |
|
Power Supply
|
12 Volts |
| Camera |
|
Image Sensor
|
SuperHAD CCD |
|
Picture Elements
|
NTSC: 510 (H) x 492 (V)/
PAL: 500 (H) x 582 (V) |
|
Horizontal Resolution
|
420 TV Lines |
|
S/N Ratio
|
More than 48db |
|
Minimum Illumination
|
0 LUX |
|
Video Output
|
1.0V(P-P)75 |
|
Power Supply
|
DC 12V |
|
Video Output
|
1.0V p-p/75 Ohm |
|
Connector
|
BNC |
|
Infrared Wavelength
|
24 units 850nm |
|
Illumination Distance
|
Up to 65ft /20m |
|
Auto Switch
|
Night (IR on) / Day (IR off) |
|
Housing
|
Aluminum Alloy |
|
Size
|
4 x 23/4 x 63/4 (99mm x 71mm x169mm) |
|
|

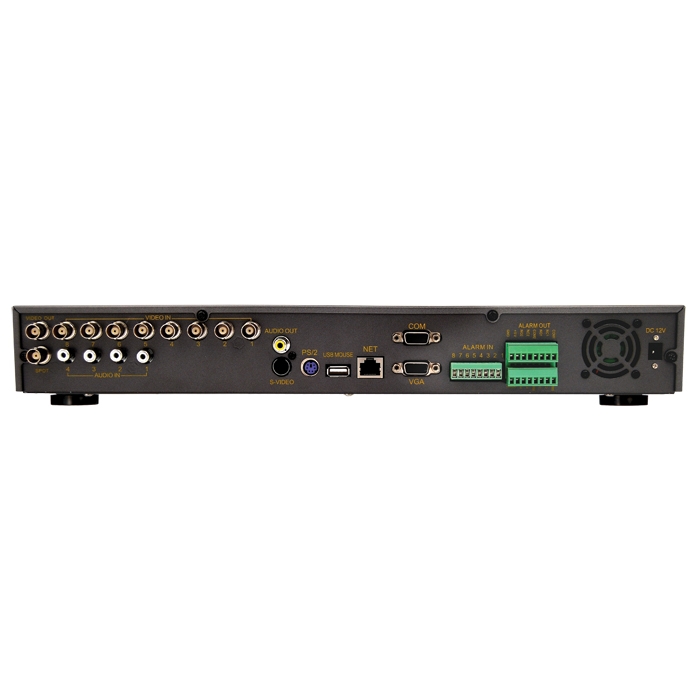

| Labelled Diagram |
|
|
| |

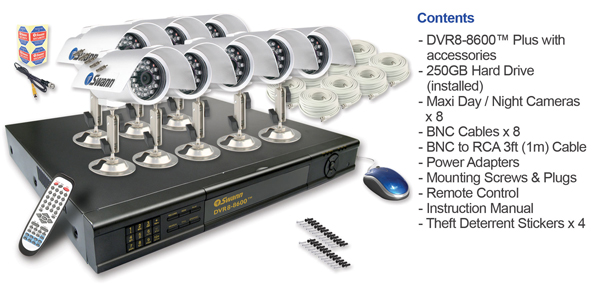

| What's in Box? |
|
*Note: Product contents may change without notice.
|
|
|
|
