Just add cameras to create your own monitoring & recording solution for home or business!
Sleek 19" black LCD monitor has built in 4 channel recording inside!
Choose up to 4 cameras to create your own high powered all-in-one monitoring kit with 19" black LCD monitor and built-in 4 channel DVR recording. |
|
|
| Product Info |
Features
- Digital video recorder & 19 inch LCD monitor all-in-one
- View & record up to 4 cameras simultaneously
- MPEG4 & MJPEG high compression video quality
- Just add any of Swann's security cameras
- Quality built-in speaker to hear & record every sound
- Perfect for any home or business
|
|
|
| |
| Specifications |
| |
19 LCD DVR Monitor |
|
Display Size
|
19 (wide) |
|
Resolution
|
1440 x 900 |
|
Contrast
|
850:1 |
|
Brightness
|
300 cd/m2 |
|
View Angle
|
H: 160, V: 140 |
|
Response Time
|
5 ms |
|
Input
|
D-Sub, AV X1, Line In/Out X1, BNC In X4, BNC Out x2, Sensor/Alarm, LAN |
|
Speaker
|
5W x 2 |
|
DVR Display Mode
|
Quad, Full Screen, Sequence |
|
Frame Rate
|
NTSC: 120 fps / PAL: 100 fps |
|
DVR Display Resolution
|
NTSC: 720x480 / PAL: 720x576 |
|
Recording Modes
|
Continuous, Scheduled, Sensor / Motion Trigger |
|
Compression
|
Modified MJPEG |
|
Quad Recording
|
NTSC: Max.30fps / PAL: Max.25fps |
|
Each (MUX) Recording
|
NTSC: Max 7.5fps / PAL: Max 6.25fps |
|
Recording Resolution
|
NTSC:640x224 / PAL: 640x272 |
|
Quality Level
|
High, Normal, Low |
|
Audio Recording
|
Input/Output: 1 Channel / 1 Channel |
|
Playback Search Mode
|
Time / Event |
|
Display Mode
|
Quad, Full Screen |
|
USB Backup
|
USB 2.0 for USB Pen drive |
|
Remote Backup
|
PC Client Program |
|
Alarm Input / Output
|
4 / 1 Dry Contacts |
|
Network Connection
|
Fast Ethernet 10/100, RJ-45 Interface |
|
Compression
|
MPEG4 |
|
Protocol
|
TCP/IP, DHCP, Static IP, DDNS |
|
System Power
|
DC 12V / 5.83A |
|
|
| |
| Labelled Diagram |
|
|
| |

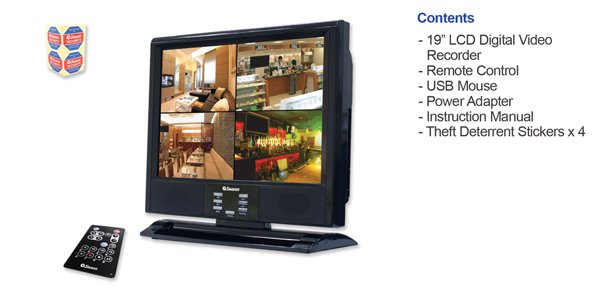

| What's in Box? |
|
*Note: Product contents may change without notice.
|
|
| |
| |
| |
| |
|
|
