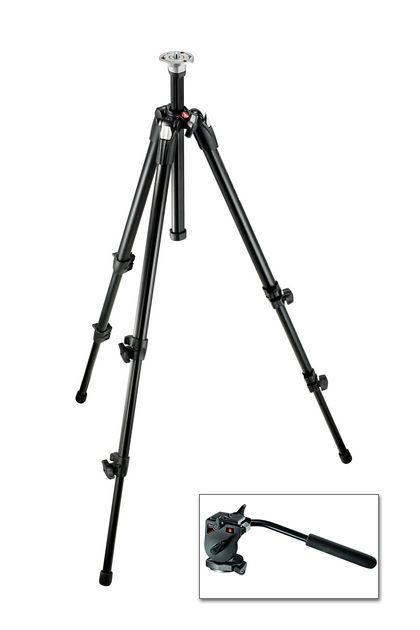

190XDB MINI BASIC TRPD
Newly redesigned, the 190XDB is lighter in weight and slightly more compact. It has an ergonomics leg angle release mechanism and the wing locking knobs.
FULL TECHNICAL SPECIFICATIONS
closed length 53,5 cm
minimum height 35 cm
maximum height 146 cm
maximum height (with center column down) 118,5 cm
weight 1.60 kg
load capacity 5.00 kg
color black
material aluminum
leg cross section round
column cross section three-faceted
leg sections 3
leg angles 25°,46°,66°,88°
centre column rapid
column tube diameter 25mm
attachment 3/8"
700RC2 COMPOSITE VIDEO HEAD
A compact and lightweight 2-movement video head designed principally to support the latest digital video equipment but also ideal for spoting scoped and suited to still photography cameras with medium and long tele lenses. The 700RC2 has a fixed length pan bar with soft handle and separate locking mechanisms for the 360 pan and the +90/-75 tilt. Smooth and constant movements on both axes are assured by a fixed system of fluid cartridges. Equipped with quick release 200PL-14 video plate system with VHS PIN and a secondary safety catch. Head to tripod attachment is 3/8" female. Optional Plates: 200PL-38.
FULL TECHNICAL SPECIFICATIONS
weight 0.52 kg
load capacity 2.50 kg
panoramic rotation 360 °
minimum working temperature 60 °C
maximum working temperature -10 °C
working height 9.6 cm
color black
material aluminum
independent pan lock yes
tilt drag continuously adjustable from 0 to max level
front tilt -75° / +90°
quick release yes
secondary safety system yes
pan bars included (no.) 1
pan bar positions 1
plate type 200PL-14
attachment (bottom) 3/8" female thread
attachment 1/4'' screw with VHS pin
pan drag continuously adjustable from 0 to max level
independent tilt lock yes null
