Sekonic Twinmate L-208 - Compact And Lightweight Analog Incident/Reflected Shoe Mount Meter

Product May Vary From Image
Part No:
100490
Brand:
Manuf No:
Ship Weight:
0.8 KG  Details
Usually Ships:
No Longer Available   More info
Product Description

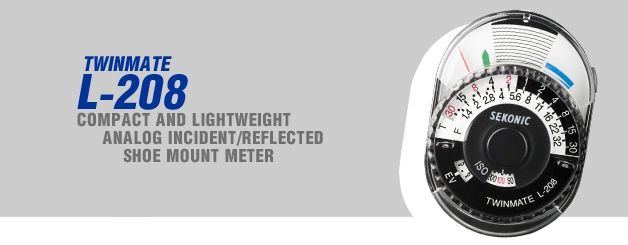

Sekonic Twinmate L-208 - Compact And Lightweight Analog Incident/Reflected Shoe Mount Meter

The Sekonic L-208 TWINMATE is a palm-sized analog light meter for hand-held incident and reflected ambient light readings. Small and light, the L-208 TWINMATE can also be mounted onto your camera or bracket - using the included hot-shoe adapter for quick, camera-positioned reference readings as you work. Though designed primarily for entry-level users, long-time shooters look to the Sekonic L-208 TWINMATE as an accurate, easy-to-stow, back-up meter. Owners of rangefinder cameras who desire and incident and reflected meter also appreciate the included shoe mount.



A sliding lumisphere enables accurate incident readings. Retract the lumisphere, and you can now take reflective readings. The silicon photo diode receives light at an angle of 33-degrees , which is slightly narrower than the angle-of-view of a normal lens. A hold-and-read function maintains the reading for 15 seconds after releasing the measurement button to allow you time to evaluate your settings. A single, long-lasting CR2032 lithium battery powers the show.



  • Compact and light. Ideal for one-handed operation or can be attached to your camera's hot-shoe - or bracket - using the included accessory shoe adapter
  • Perfect for beginners, or as a compact ambient backup meter
  • 30-seconds to 1/8000th, f/1.4 to f/32 in half-stop increments
  • ISO 12 to 12500 in half-stop increments
  • EV3 to EV17 in both incident and reflected modes at ISO 100
  • Hold-and-Read' mode locks readings for 15-seconds, allows for extended exposure evaluation time
  • 33-degree acceptance angle in reflected mode
  • Fits in your pocket, weighs only 1.5 ounces (40g) (w/o battery)
  • Includes Strap, Carrying Case, CR2032 Lithium Battery and Accessory Mounting Shoe

L-208 TWINMATE - Technical Specifications



Type: Analog exposure meter for ambient light
Light receiving method: Incident light and reflected light

Incident light: Sliding Lumisphere
Reflected light: Light receiving angle 33
Light receptor element: Silicon photo diode


Measuring Range (ISO 100)

Ambient light: Incident light EV 3 to EV 17 Reflected light EV 3 to EV 17 (with 33 angle)
Calibration Constant: Incident light metering: Lumisphere C = 340
Reflected light metering: K = 12.5

Display Range

Film speed: ISO 12 to 12500 (in 1/2 steps)
Shutter Speeds: Ambient light: 30 seconds to 1/8000 seconds (in 1 stop) plus 1/5, 1/10, 1/125, 1/50, 1/100, /200, 1/400, 1/800
Aperture: f/1.4 to f/32 (in 1, 1/3 stop)
Light Receptors EV 3 to EV 17 (in 1, 1/2 stop)


Other features

Battery used:Type: One CR2032 battery (3V Lithium dry cell)
Operating temperature range: 32 to 104 F (0 to 40 C)
Storage temperature range: -4 to 140 F (-20 to 60 C)
Dimensions: 1.8"W x 2.6"H x 1.0"D (45mmW x 65mmH x 24mmD)


Product Warranty


1 Year Return to Base
